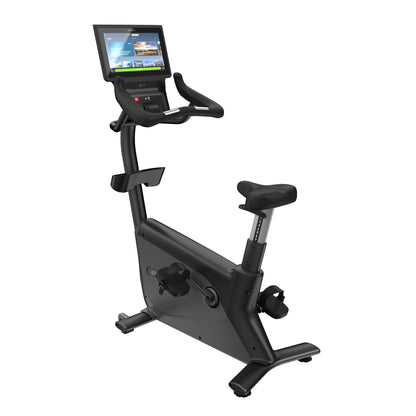

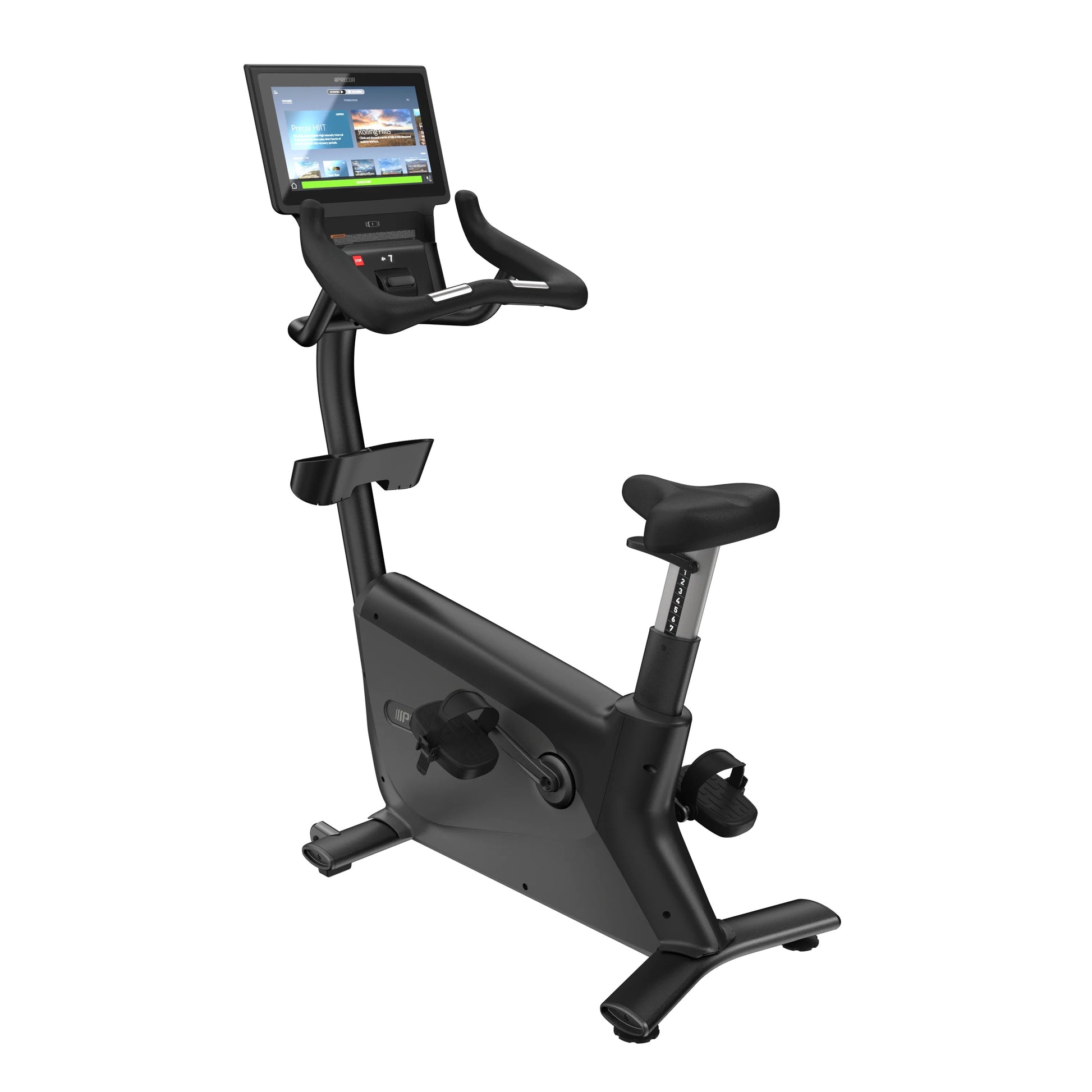

Precor UBK 885 Upright Bike (P84)

The Precor UBK 885 Upright Bike features custom-designed handlebars with integrated touch heart rate for an efficient workout experience with maximum comfort. One-handed seat adjustment on or off the bike, a redesigned saddle for riding comfort, and improved knee over pedal spindle geometry for efficient pedaling all provide a smooth, comfortable workout.

Product Features

P84 TOUCHSCREEN CONSOLE

The P84 console features a brilliant 16-inch touchscreen that combines performance, entertainment, and workout variety. Exercisers can enjoy seamless wireless casting that provides access to thousands of third-party fitness and media apps.  They can also stream content through fully integrated PlutoTV, Netflix and YouTube apps—putting the content they want, right  at their fingertips.

OVER-MOLDED HANDLEBARS

The over-molded design adds comfort and durability while offering multiple riding positions and central heart rate contacts.

SEAT ADJUSTMENT AND IMPROVED SADDLE DESIGN

The simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike.

DUAL-SIDED PEDALS

The dual-sided pedals allow the exerciser to use the pedals with or without the integrated straps. The extra-wide pedals comfortably accommodate feet of all sizes to ensure proper pedaling form.

EASE OF MAINTENANCE

The easy-to-remove shroud ensures quick access to the belt-drive system for maintenance and servicing without removing the pedals or crank.

Please note: This treadmill requires a dedicated 120V/20A circuit with a 5-20R NEMA receptacle to operate in a home. GFCI outlets are not supported.

PrecorCast (ChromeCast) and Peloton Classes are not supported for Residential Use. Streaming is limited to Netflix and YouTube (credentials are not saved between workouts). Contact precor.com for Commercial Installations.

Equipment Features



Covers

Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.



Cable Management
Optional


Accessories Holder(s)
Yes


Transport Wheels
Integrated


Frame

Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.



Bearings

The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.



Seat

Ergonomic saddle design with comfort groove. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort. Optional universal seat post allows easy installation of different saddle types.



Handlebars

A new over-molded handlebar design offers the user three comfortable riding positions-upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The wide width of the handlebars provide stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the user in better ergonomic position with the forearms more directly under the shoulders. In the cruising position, the wide handlebar is more comfortable on the user's hands. Touch heart rate is integrated in the upright and road-race positions.



Pedals

For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user's knee.



Biomechanics

To achieve proper pedaling biomechanics, the seat post and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.




Resistance System



Minimum Watts
18 watts (level 1 at 20 RPM)


Maximum Watts
750 watts (level 25 at 150 RPM)


Resistance Levels
25


3-Piece Crank

3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.



Drive System

The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems.



3-Phase Generator

3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.



Belt Drive

Belt drive for smoother, quieter operation and reduced maintenance.




Console Features



Supports Connection to Apple Watch®
Yes, via optional Smart Watch Connector. Factory-installed or field-installed retrofit kit.


Console Type
15-inch LCD Capacitive Touch Screen


Numeric Keypad
Yes


Motion Controls
Yes


Tactile Dome Keys
Yes


QuickStart™
Yes


Electronic Readouts

18 Readouts
Resistance Level

Total Distance, Distance Remaining
Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts
Time Elapsed, Time Remaining, Time in Zone, Segment Time
RPM, Speed, Average Speed
Heart Rate, Average Heart Rate, Max Heart Rate



Console Language(s)
English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish


Units Selection
Metric or U.S. Standard


Preva® Pass Reader
Yes


Maximum Pause Time (Pause)
5 minutes


Preset Programs

17 Programs
Lose Weight
4-3 Interval
Aerobic
Fat Burner
Heart Rate Zone
Be Fit
Manual
1-1 Interval
2-1 Interval
4-1 Interval
Rolling Hills
Mountain Peaks
Hill Climb
Heart Rate Zone
Push Performance
1-4 Interval
1-2 Interval
5 K
Heart Rate Zone
Watts Target



Maximum Workout Time
120 minutes



Heart Rate Monitoring



Touch

Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions.



Telemetry

Yes. Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap.



Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.




Network Capabilities



Diagnostics

Ability to set club parameters, e.g. limit exercise time, set default language and pause time.



Wireless
Yes


Preva® Network Capable
Optional



Equipment Dimensions and Weight



Length
48 inches / 122 cm


Width
21 inches / 53 cm


Height
62 inches / 157 cm


Equipment Weight
169 lbs / 77 kg



Shipping Dimensions and Weight



Length
51.5 inches / 131 cm


Width
28.5 inches / 72 cm


Height
54 inches / 137 cm


Shipping Weight
178 lbs / 81 kg



Power Requirements



Equipment
Powered


International 240 VAC

Applicable country-specific power cord



U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle


Personal Viewing Screen (PVS)
Powered



Equipment Specifications



Maximum User Weight
350 lbs / 159 kg


Standard Frame Colors
Black Pearl



Regulatory



FCC
FCC


ETL
ETL


CE
CE


EN957
EN957 / ASTM



Integrated Entertainment Options



Reading Rack
Optional


Personal Viewing System (PVS)
Integrated


Personal Viewing Screen (PVS) (Specification)
15in. LCD Capacitive Touch Screen


iPod® / iPhone® Compatible
Integrated

Commercial Warranty:• Frame and welds: 7 Years
• Parts: 3 Years
• Labor: 1 Year
Residential Warranty:• Frame and welds: Lifetime
• Parts: 10 Years
• Console: 3 Years
• Labor: 1 Year
