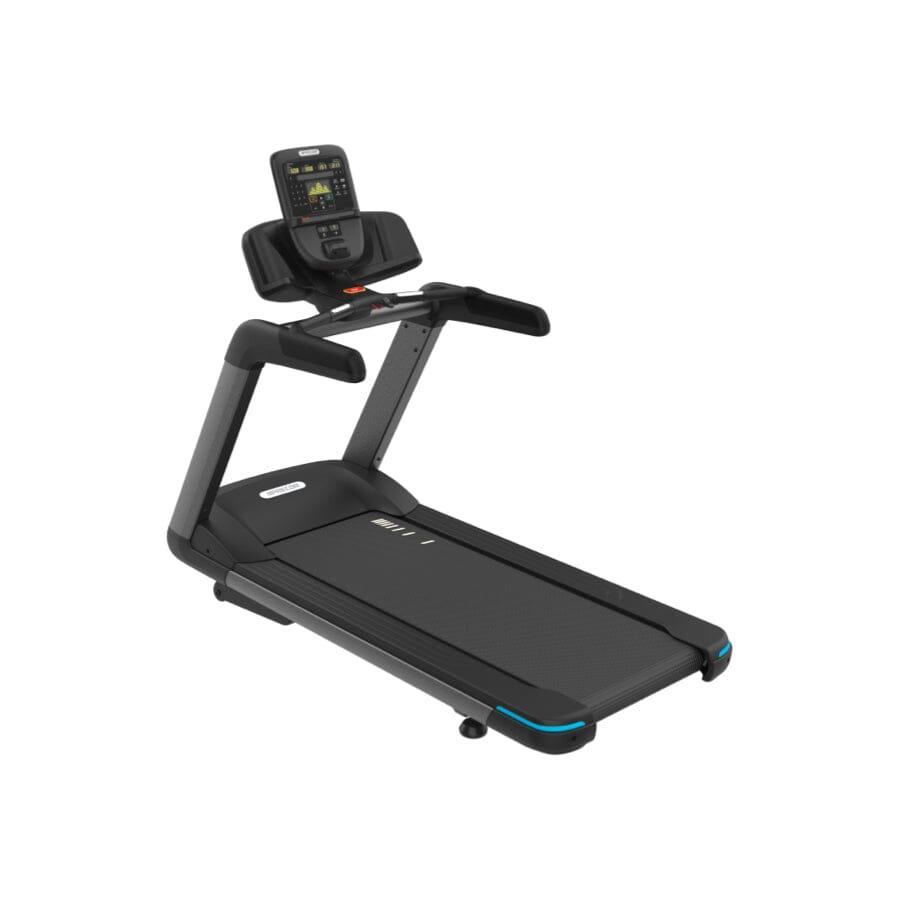

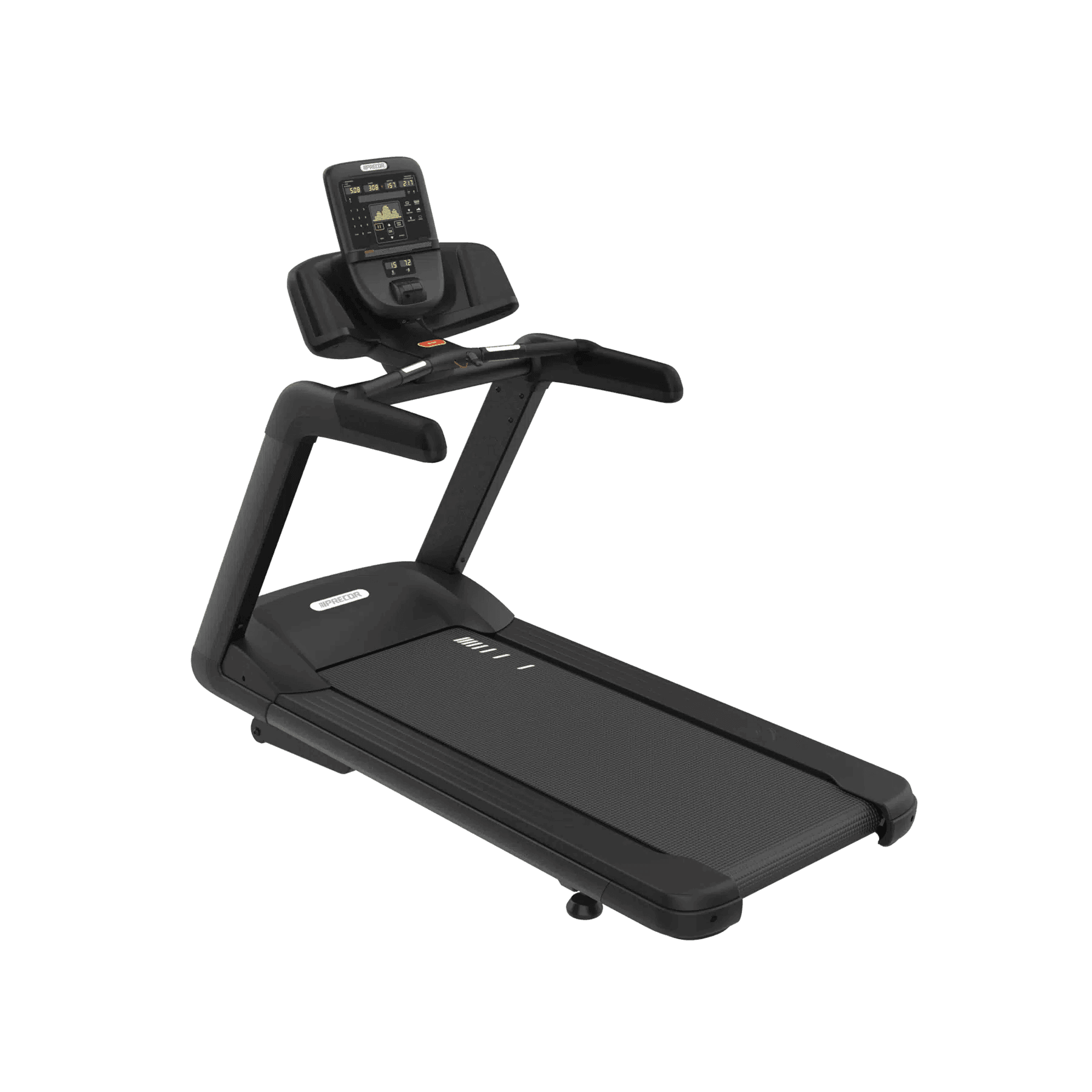

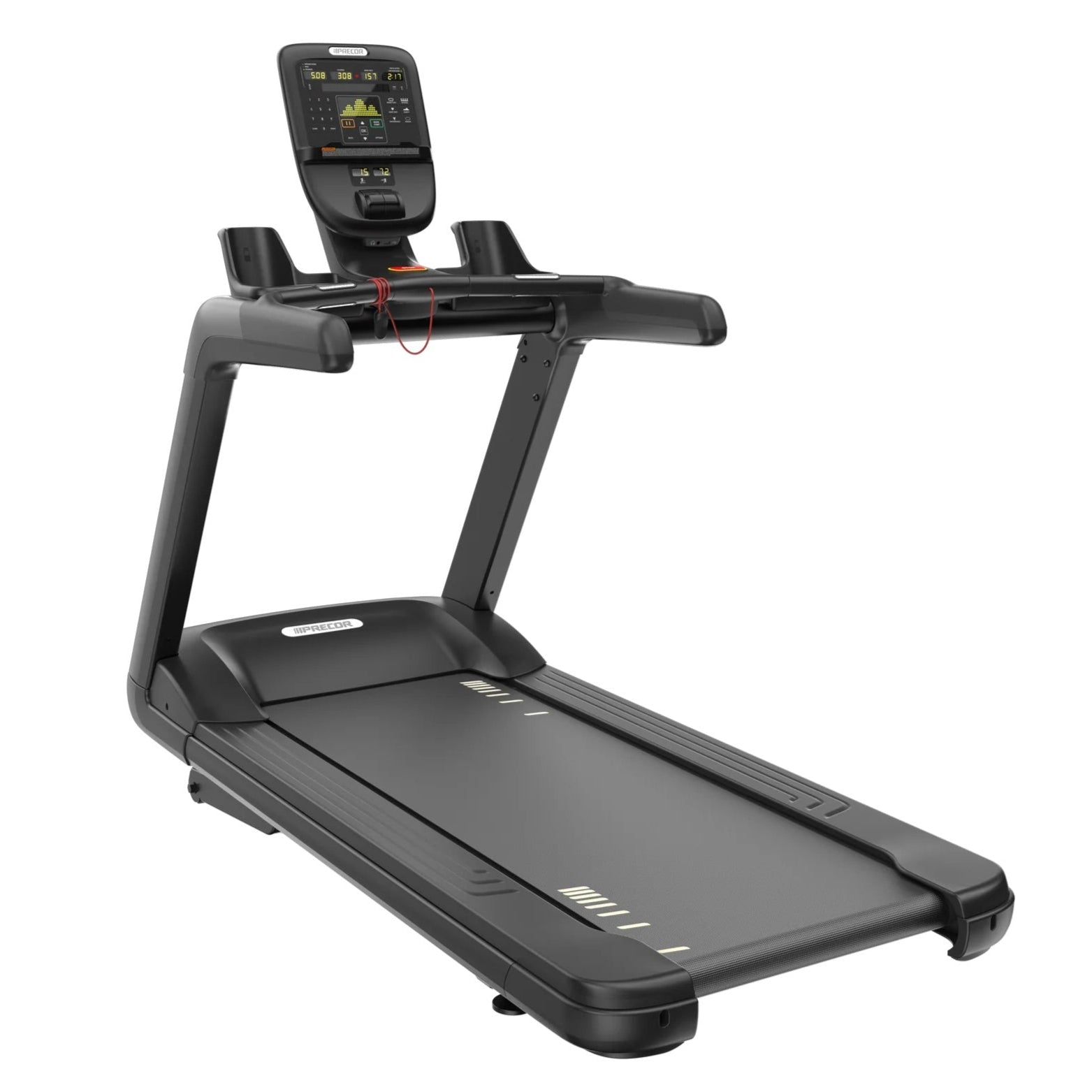

Precor TRM 631 Treadmill

Equipment Features



Cable Management
Optional


Color

Frame: Black Pearl Plastics: Dark Tungsten


Transport Wheels
Yes


Reversible Deck
Yes


Auto Stop
Step sensor detection stops a moving running belt when there is no exerciser.


Water Bottle and Accessories Holder
Dual holders cradle exercisers water bottle to keep it stable. Accessory tray securely supports exercisers cell phone, keeping it front and center, along with ample room for keys, membership card, etc.


Emergency Stop
Safety clip and lanyard attached to the stop switch to immediately turn off power bringing the treadmill to a stop. The lanyard and safety clip can be conveniently attached to a thoughtful tab located underneath the front handrail.

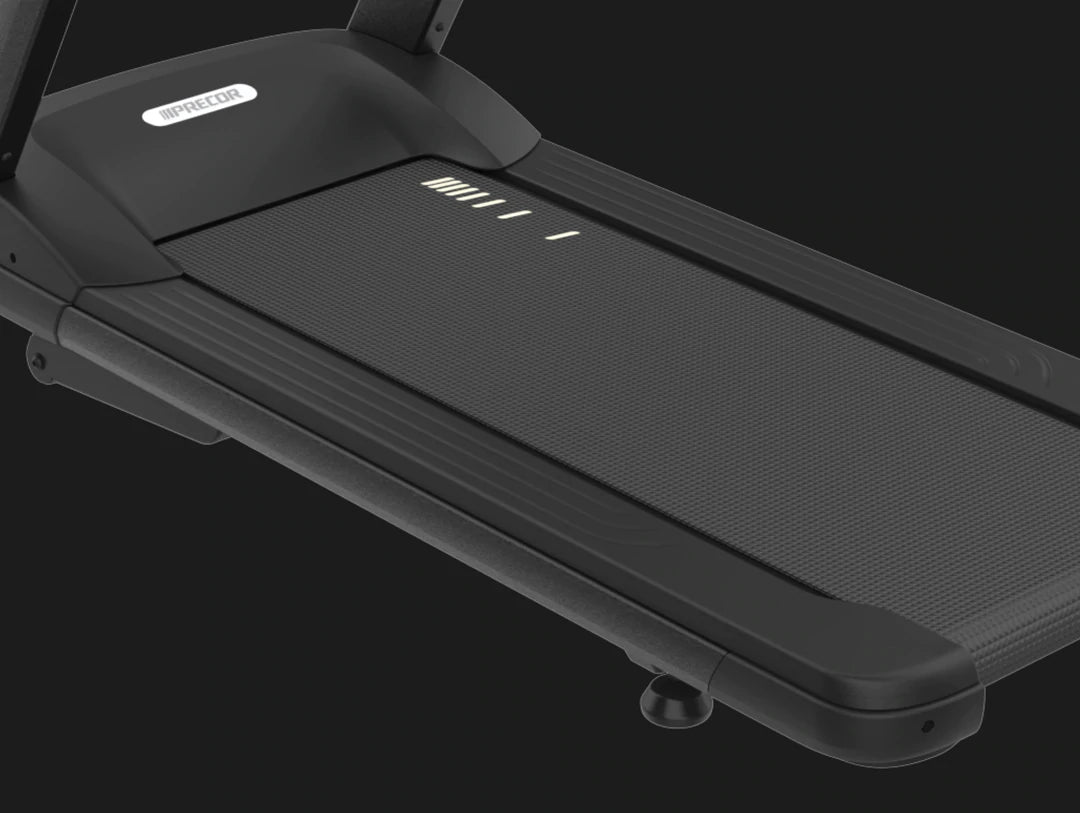

Deck and Belt
Deck is a one-inch Slik-Dek bed with a thin layer of wax to assist in the break-in of the new belt / deck system. The deck is composed of 52 lb / 23.6 kg high-density fiberboard core with phenolic laminate bonded on both sides. Can be flipped to double life. Deck and belt require no external lubrication. Rear-deck hinges and front cushioning create a laterally stable platform, reducing shock to the user and providing firm push off.


Ground Effects® Impact Control System
New and improved progressive shock absorption system that absorbs high impact movements and supports a solid and controlled push off.


Elevation System
Elevation system generates up to 1000 lb / 453.6 kg of thrust and operated in compression for reliable operation.


Rollers
Steel tapered rollers keep the belt centered to reduce maintenance.


Frame
New frame design results in an ultra-stable console, solid feel, and quiet operation.

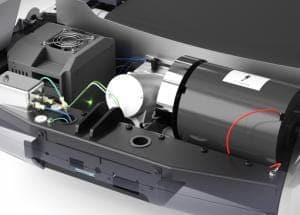

Motor
Integrated Foot Plant Technology™ Drive controller works with a 3 HP peak duty AC induction motor for a smooth, natural feel. 3-phase, sensorless variable frequency drive technology for high reliability and accurate speed control.

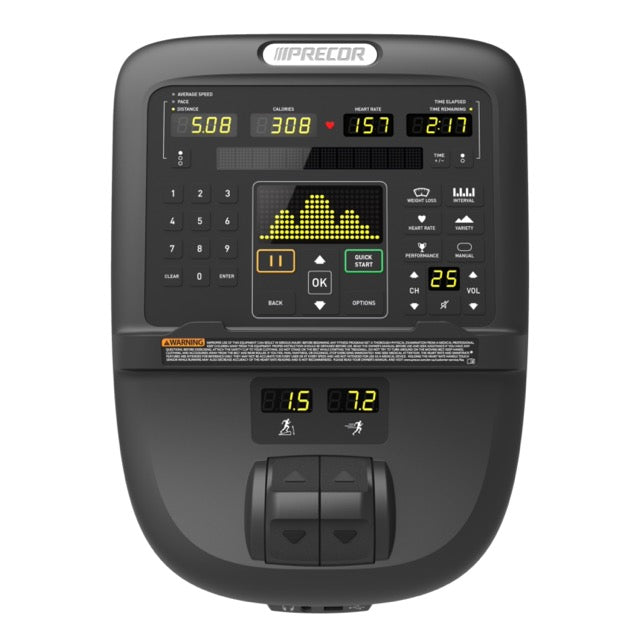

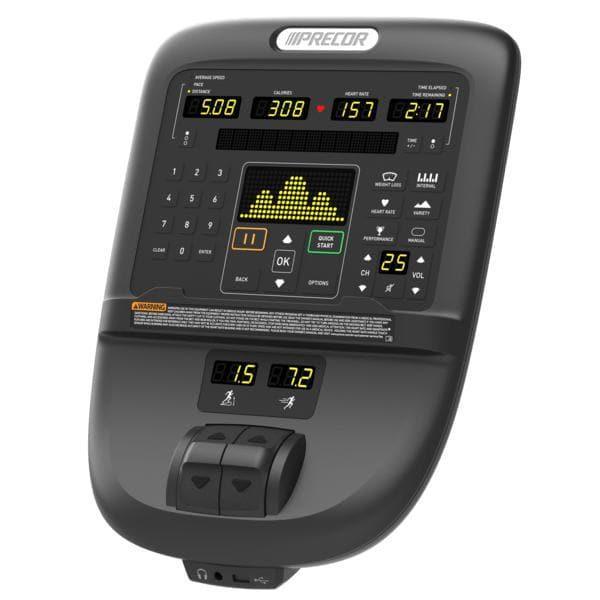

Console Features



Display Type
Advanced LED


Numeric Keypad
Yes


Motion Controls
Yes


QuickStart™
Yes


Tactile Dome Keys
Yes


Console Language(s)
English, Dutch, French, German, Italian, Japanese, Portuguese, Russian, Spanish


Units Selection
Metric or US Standard


Maximum Pause Time (Pause)
120 seconds


Maximum Workout Time
Unlimited


Electronic Readouts
Speed Incline Distance, Pace, Average Speed Calories Heart Rate Time Elapsed, Time Remaining % Complete, Time in Zone, Segment Time, Cals/min, Cals/hr, watts, METS, Target HR, Average HR, Elevation Gain


Preset Programs

Weight Loss Custom Weight Loss HRC Weight Loss HRC 1 Aerobic 2 Aerobic Heart Rate Basic HRC Custom Weight Loss HRC Weight Loss HRC Performance Track 5K Gerkin Fitness Test Variety Random 1 Cross Country 2 Cross Country 1 Gluteal 2 Gluteal 1 Custom 2 Custom Interval 1-1 Interval 1-2 Interval 1-3 Interval Custom Interval Manual Manual





Heart Rate Monitoring



Touch
Touch heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes.


Telemetry
Equipped for heart rate telemetry reading using a chest strap.





Integrated Entertainment Options



Mobile Device Charger
Yes


Reading Rack
Integrated


Personal Viewing System (PVS)
Optional


Entertainment Cap / Wireless Receiver
Optional





Network Capabilities



Diagnostics
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.


CSAFE Enabled
Yes





Equipment Specifications



Roller Diameter (inches / cm)
2.5 in / 6.35 cm


Power Cord Management
ICE 320-C19 inlet supporting Schuko and BSI plugs


Handrail Length (inches / cm)
18 in / 45.7 cm / 48 cm


Maximum User Weight
350 lb / 159 kg


Step-up Height
8.4 in / 21.3 cm


Speed Range
0.5 - 12 mph / 0.8-19.2 km/h


Decline / Incline Range
0% to 15% incline in 0.5% increments


Running Surface (L X W)
60 X 22 in / 153 X 56 cm





Equipment Dimensions and Weight



Height with PVS
78 in / 198 cm


Length
83 in / 211 cm


Width
35 in / 89 cm


Equipment Weight
325 lb / 147 kg


Height
62 in / 157.5 cm





Shipping Dimensions and Weight



Length
92 / 42 in / 234 / 107 cm


Width
39 / 39.5 in / 99 / 100 cm


Height
23.5 / 24 in / 60 / 61 cm


Shipping Weight (base equipment)
427 lb / 194 kg





Power Requirements



Equipment
Powered


International 240 VAC
IEC 320-C19 inlet supporting applicable country-specific power cord


U.S. & Canada 240 VAC
Dedicated 220V- 240V/20A circuit with 6-20R NEMA receptacle

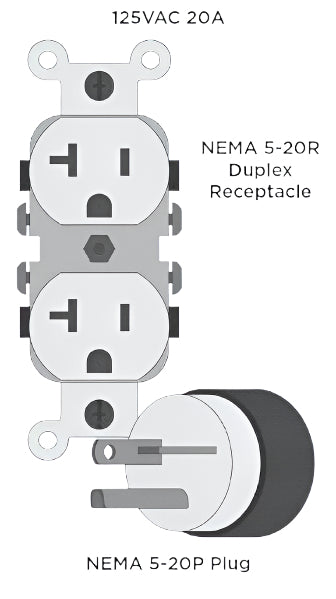

U.S. & Canada 120 VAC
Dedicated 120V/20A circuit with 5-20R NEMA receptacle


Personal Viewing Screen (PVS)
Powered


Cord Length
12 feet / 3.7 meters




Regulatory



UL
UL 1647


FCC
FCC


ETL
ETL


CE
CE


EN957
EN957 / ASTM

Commercial Warranty: Frame and welds: 7 Years Parts: 3 Years Labor: 1 Year Residential Warranty: Frame and welds: Lifetime Parts: 10 Years Console: 3 Years Labor: 1 Year
