Precor
Precor UBK 835 Upright Bike
Precor UBK 835 Upright Bike
Couldn't load pickup availability
Description
Description
Climb aboard and start pedaling on the Precor UBK 800 Line upright bike, the exact same bike you’ve experienced in fitness centers and five-star resorts around the world. With its finely tuned ergonomics, durability, and a 750-watt two-stage drive system, you’ll enjoy an elite professional-class workout right in the comfort of your own home.
Innovation for Superior Riding Comfort
Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.
P31 ConsoleFinally, an LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.
[SPECIFICATION]
Equipment Features
| Handlebars | Handlebar design offers three riding positions - upright, cruising, and road. The overall width of the handlebars places the user in better ergonomic position with the forearms more directly under the shoulders. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. |
| Seat | Ergonomic seat design with comfort groove. 10.5 inches (27 cm) width that quickly tapers to a narrow nose for improved riding comfort. Universal seat post allows easy installation of your own saddle. |
| Biomechanics | KOPS Biomechanics (Knee Over Pedal Spindle) - to achieve proper pedaling biomechanics, the seat post and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position. |
| Bearings | The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life. |
| Pedals | Dual-sided pedals can be used without the pedal straps. The extra wide pedal comfortably accommodates feet of all sizes. |
| Frame | Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame. |
| Seat Adjustment | New, convenient seat adjustment allows the user to easily change the seat to their desired height, either on or off the bike. |
| Covers | Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
| Transport Wheels | Integrated |
| Cable Management | Optional |
| Universal Seat Mount | Yes |
Resistance System
| 3-Piece Crank | 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| Drive System | The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
| Resistance Levels | 25 |
| Minimum Watts | 18 (level 1 at 20 RPM) |
| Maximum Watts | 750 (level 25 at 150 RPM) |
Console Features
| Console Type | Large LED Display |
| Tap Control | No |
| Tactile Dome Keys | Yes |
| QuickStart™ | Yes |
| Numeric Keypad | Yes |
| Units Selection | Metric or U.S. Standard |
| Preset Programs | Manual Variety Cross Country Random Custom Resistance Weight Loss Interval 1:1 1:2 1:3 Heart Rate Control Basic HRC Performance Fitness Test Hill Climb Watts Control |
| Console Language(s) | Dutch, English, French, German, Italian, Russian, Spanish |
| Maximum Pause Time (Pause) | 30 seconds |
| Electronic Readouts | Resistance Level Distance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR, % Complete Workout Profile Workout Summary |
| Maximum Workout Time | unlimited |
Heart Rate Monitoring
| Touch | Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions. |
| Telemetry | Yes. Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap. |
| SmartRate | No |
Integrated Entertainment Options
| Reading Rack | Integrated |
| Personal Viewing Screen (PVS) (Specification) | 15in. Screen |
| Personal Viewing System (PVS) + Personal Entertainment Player (PEP) (iPod® compatibility) | Optional |
| Entertainment Cap / Wireless Receiver | Optional |
Network Capabilities
| CSAFE Ready | Yes |
| FitLinxx Compatible | Yes |
| Diagnostics | Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
Equipment Specifications
| Maximum User Weight (lbs / kg) | 350 lbs / 159 kg |
| User Height Range (inches / cm) | 58 to 78 / 147 to 198 |
| Crank Width | 19 / 7.5 |
| Resistance Range | 25 18 (level 1 at 20 RPM) 750 (level 25 at 150 RPM) |
Equipment Dimensions and Weight
| Length | 48 inches / 122 cm |
| Width | 21 inches / 53 cm |
| Height | 62 inches / 157 cm |
| Height with PVS | 72 inches / 183 cm |
| Equipment Weight | 160 lbs / 73 kg |
Shipping Dimensions and Weight
| Length | 51.5 inches / 131 cm |
| Width | 28 inches / 71 cm |
| Height | 54 inches / 137 cm |
| Shipping Weight | 178 lbs / 81 kg |
Power Requirements
| Equipment | Self-Powered |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| U.S. & Canada 240 VAC | N/A |
| International 240 VAC | Applicable country-specific power cord |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 / ASTM | EN957 / ASTM |
Specification
Specification
Equipment Features
Handlebars
Handlebar design offers three riding positions - upright, cruising, and road. The overall width of the handlebars places the user in better ergonomic position with the forearms more directly under the shoulders. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position.

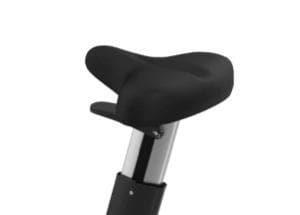

Seat: Ergonomic seat design with comfort groove. 10.5 inches (27 cm) width that quickly tapers to a narrow nose for improved riding comfort. Universal seat post allows easy installation of your own saddle.
Biomechanics
KOPS Biomechanics (Knee Over Pedal Spindle) - to achieve proper pedaling biomechanics, the seat post and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
Bearings: The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.
Pedals
Dual-sided pedals can be used without the pedal straps. The extra wide pedal comfortably accommodates feet of all sizes.
Frame: Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Seat Adjustment
New, convenient seat adjustment allows the user to easily change the seat to their desired height, either on or off the bike.
Covers: Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Transport Wheels
Integrated
Cable Management: Optional
Universal Seat Mount: Yes
Resistance System
3-Piece Crank
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
Drive System: The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems.
3-Phase Generator
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive: Belt drive for smoother, quieter operation and reduced maintenance.
Resistance Levels
25
Minimum Watts: 18 (level 1 at 20 RPM)
Maximum Watts
750 (level 25 at 150 RPM)
Console Features
Console Type
Large LED Display
Tap Control: No
Tactile Dome Keys
Yes
QuickStart™: Yes
Numeric Keypad
Yes
Units Selection: Metric or U.S. Standard
Preset Programs
Manual
Variety
Cross Country
Random
Custom
Resistance
Weight Loss
Interval 1:1 1:2 1:3
Heart Rate Control
Basic HRC
Performance
Fitness Test
Hill Climb
Watts Control
Console Language(s): Dutch, English, French, German, Italian, Russian, Spanish
Maximum Pause Time (Pause)
30 seconds
Electronic Readouts: Resistance Level Distance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR, % Complete Workout Profile Workout Summary
Maximum Workout Time
unlimited
Heart Rate Monitoring
Touch
Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions.
Telemetry: Yes. Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap.
SmartRate
No
Integrated Entertainment Options
Reading Rack
Integrated
Personal Viewing Screen (PVS) (Specification): 15in. Screen
Personal Viewing System (PVS) + Personal Entertainment Player (PEP) (iPod® compatibility)
Optional
Entertainment Cap / Wireless Receiver: Optional
Network Capabilities
CSAFE Ready
Yes
FitLinxx Compatible: Yes
Diagnostics
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.
Equipment Specifications
Maximum User Weight (lbs / kg)
350 lbs / 159 kg
User Height Range (inches / cm): 58 to 78 / 147 to 198
Crank Width
19 / 7.5
Resistance Range
25
18 (level 1 at 20 RPM)
750 (level 25 at 150 RPM)
Equipment Dimensions and Weight
Length
48 inches / 122 cm
Width: 21 inches / 53 cm
Height
62 inches / 157 cm
Height with PVS: 72 inches / 183 cm
Equipment Weight
160 lbs / 73 kg
Shipping Dimensions and Weight
Length
51.5 inches / 131 cm
Width: 28 inches / 71 cm
Height
54 inches / 137 cm
Shipping Weight: 178 lbs / 81 kg
Power Requirements
Equipment
Self-Powered
Personal Viewing Screen (PVS): Powered
Optional Power Supply
Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.
U.S. & Canada 120 VAC: 120V/15A circuit with 5-15R NEMA receptacle
U.S. & Canada 240 VAC
N/A
International 240 VAC: Applicable country-specific power cord
Regulatory
FCC
FCC
ETL: ETL
CE
CE
EN957 / ASTM: EN957 / ASTM
Warranty
Warranty
Commercial Warranty:• Frame and welds: 7 Years
• Parts: 3 Years
• Labor: 1 Year
Residential Warranty:• Frame and welds: Lifetime
• Parts: 10 Years
• Console: 3 Years
• Labor: 1 Year
Shipping methods available at checkout
Economy
- Ships in 2-3 weeks
- Curbside Delivery Only
Economy
FreeOur free shipping option. Items usually ship within 2-3 weeks via freight handler, and home delivery is typically 3-4 weeks from date of order. Customer is contacted ahead of time to schedule curbside delivery.
*Does not include inside delivery, assembly or installation (curbside delivery only)
Delivery & Assembly
- Ships in 2 - 3 weeks
- In-home Delivery & Assembly in Room of Choice
Delivery & Assembly
$399Items usually ship within 7-10 days via freight handler, and home delivery is typically 2-3 weeks from date of order.
After garage delivery, a team of technicians will schedule full assembly and installation, including bringing the equipment into the home and up or down any stairs.
*This is the best option for customers without driveway or garage access, such as apartments where equipment must be delivered up or down stairs.
Come and see this product in store | Find your nearest store
TRAIN LIKE YOU RIDE
With a huge one-piece handlebar that features four strategically placed heart-rate sensors and a 750-watt two-stage drive system that makes your pedaling fluid no matter how much resistance you set, you can switch between grueling hill climbs and recovery cruising mode easily.
COMFORTABLE RIDES
A heavily padded seat with the grooves and curves in all the right places and a solid one-piece handlebar that allows you to easily adjust your riding position ensures your stationary bike is not masquerading as a torture device. You can even swap in your own seat.
GEOMETRIC PERFECTION
As you already know, the key to a good bike ride is good biomechanics. We set the angle of the seat rail and offset the crank axle to create efficient pedaling that keeps your knee over the pedal spindle and reduces shear force.
