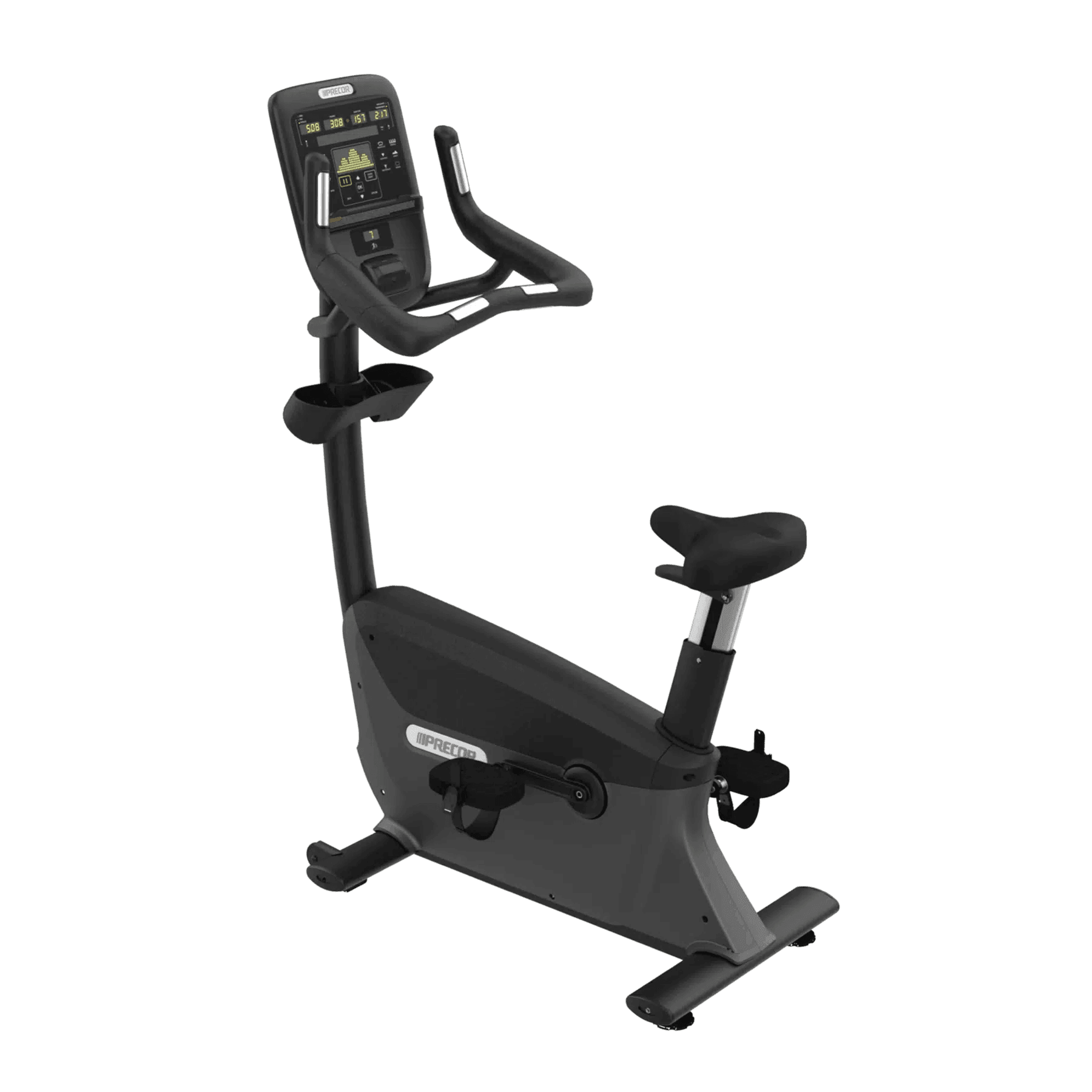

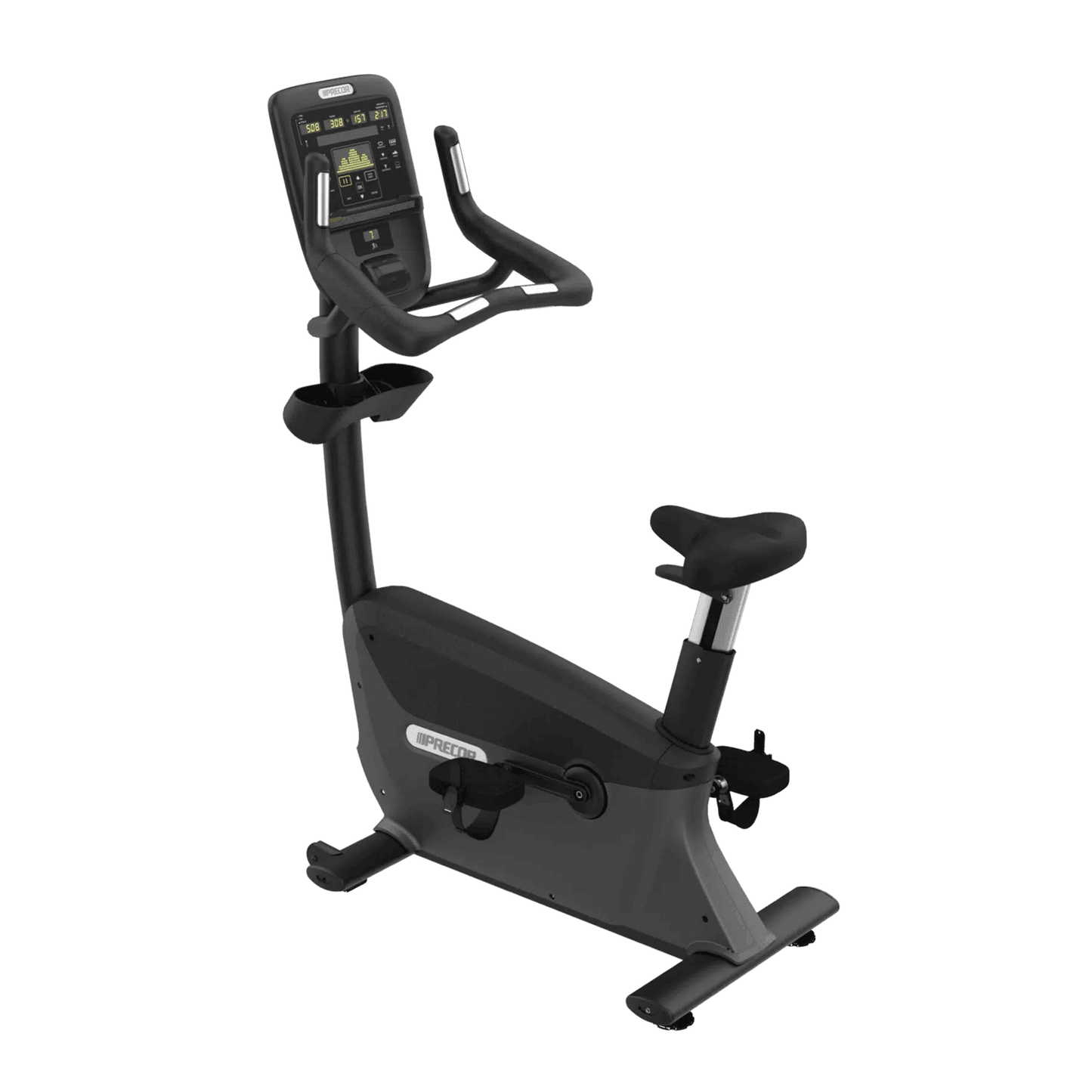

Looking for a low-impact cardio workout, or starting a fitness program? The Precor UBK 835 Upright Bike is an excellent choice. It is the exact same commercial bike used in fitness centers worldwide, with a variety of programs, features and custom-designed handlebars to make your ride more comfortable.
Handlebars | Handlebar design offers three riding positions - upright, cruising, and road. The overall width of the handlebars places the user in better ergonomic position with the forearms more directly under the shoulders. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. |

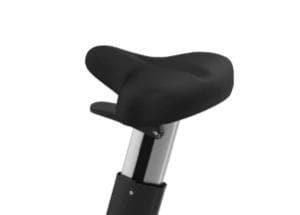

Seat | Ergonomic seat design with comfort groove. 10.5 inches (27 cm) width that quickly tapers to a narrow nose for improved riding comfort. Universal seat post allows easy installation of your own saddle. |
Biomechanics | KOPS Biomechanics (Knee Over Pedal Spindle) - to achieve proper pedaling biomechanics, the seat post and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position. |
Bearings | The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life. |
Pedals | Dual-sided pedals can be used without the pedal straps. The extra wide pedal comfortably accommodates feet of all sizes. |
Frame | Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame. |
Seat Adjustment | New, convenient seat adjustment allows the user to easily change the seat to their desired height, either on or off the bike. |
Covers | Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
Transport Wheels | Integrated |
Cable Management | Optional |
Universal Seat Mount | Yes |
3-Piece Crank | 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
Drive System | The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems. |
3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Resistance Levels | 25 |
Minimum Watts | 18 (level 1 at 20 RPM) |
Maximum Watts | 750 (level 25 at 150 RPM) |

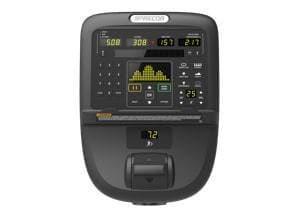

Console Type | Large LED Display |
Tap Control | No |
Tactile Dome Keys | Yes |
QuickStart™ | Yes |
Numeric Keypad | Yes |
Units Selection | Metric or U.S. Standard |
Preset Programs | Manual Variety Cross Country Random Custom Resistance Weight Loss Interval 1:1 1:2 1:3 Heart Rate Control Basic HRC Performance Fitness Test Hill Climb Watts Control |
Console Language(s) | Dutch, English, French, German, Italian, Russian, Spanish |
Maximum Pause Time (Pause) | 30 seconds |
Electronic Readouts | Resistance Level Distance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR, % Complete Workout Profile Workout Summary |
Maximum Workout Time | unlimited |
Touch | Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions. |
Telemetry | Yes. Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap. |
SmartRate | No |
Reading Rack | Integrated |
Personal Viewing Screen (PVS) (Specification) | 15in. Screen |
Personal Viewing System (PVS) + Personal Entertainment Player (PEP) (iPod® compatibility) | Optional |
Entertainment Cap / Wireless Receiver | Optional |
CSAFE Ready | Yes |
FitLinxx Compatible | Yes |
Diagnostics | Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
Maximum User Weight (lbs / kg) | 350 lbs / 159 kg |
User Height Range (inches / cm) | 58 to 78 / 147 to 198 |
Crank Width | 19 / 7.5 |
Resistance Range | 25 18 (level 1 at 20 RPM) 750 (level 25 at 150 RPM) |
Length | 48 inches / 122 cm |
Width | 21 inches / 53 cm |
Height | 62 inches / 157 cm |
Height with PVS | 72 inches / 183 cm |
Equipment Weight | 160 lbs / 73 kg |
Length | 51.5 inches / 131 cm |
Width | 28 inches / 71 cm |
Height | 54 inches / 137 cm |
Shipping Weight | 178 lbs / 81 kg |
Equipment | Self-Powered |
Personal Viewing Screen (PVS) | Powered |
Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
U.S. & Canada 240 VAC | N/A |
International 240 VAC | Applicable country-specific power cord |
FCC | FCC |
ETL | ETL |
CE | CE |
EN957 / ASTM | EN957 / ASTM |
Frame | 7 |
Parts (mechanical & electronic) | 2 |
Wear Items | 1 |
Labor | 1 |
Residential Warranty
Series/Line | Experience™ Series 600/700/800 Line |
Frame | Lifetime |
Drive Motor, Running Deck, & Belt | 10 years |
Console | 3 years |
Labor | 1 year |
High Wear Items, i.e. headphone jack, USB connectors | 90 days |
