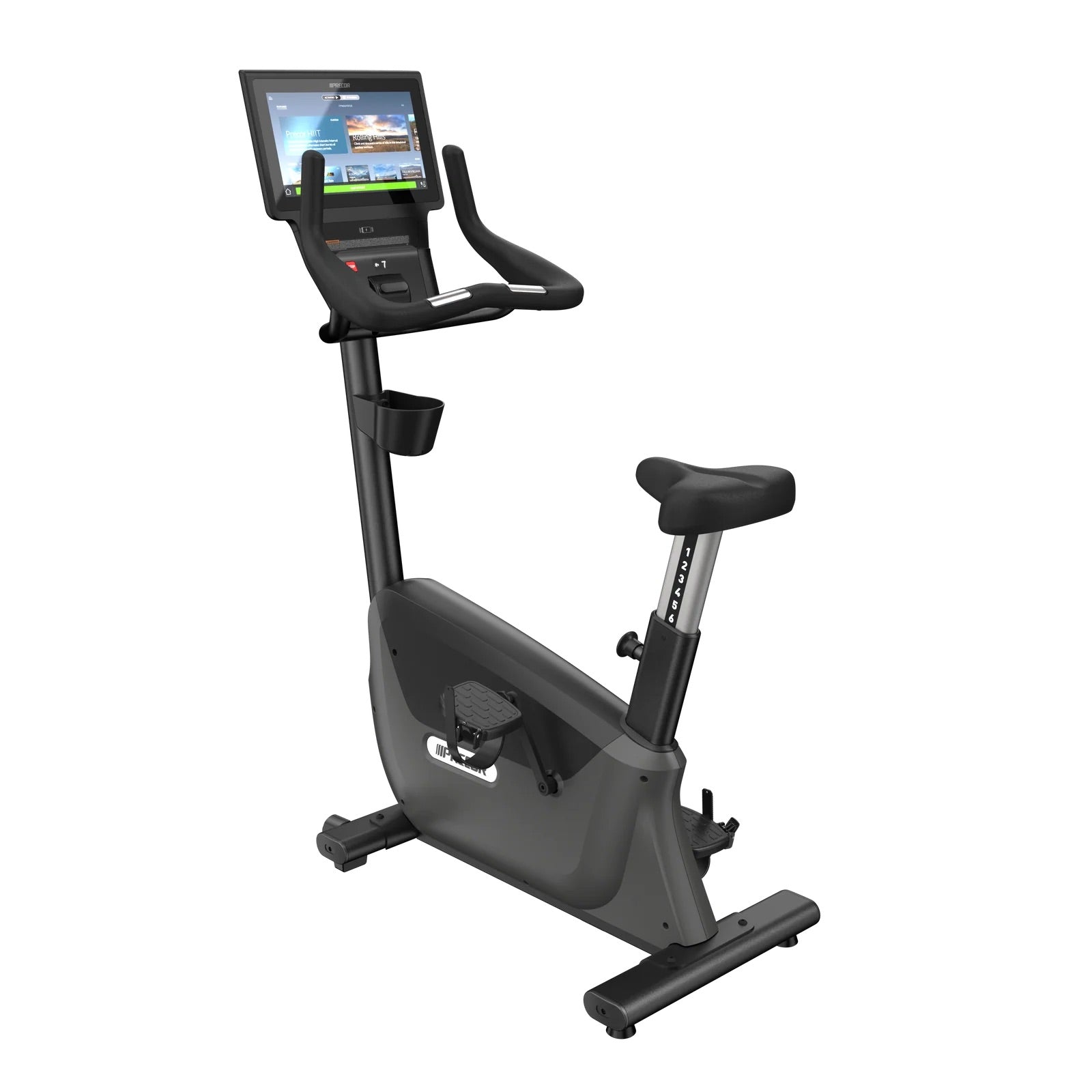

Precor UBK 685 Upright Bike (P84)
Precor UBK 685 Upright Bike (P84)
Couldn't load pickup availability
Description
Description
Enjoy the durability, performance, and comfort of working out on a professional-grade stationary bike. The Precor UBK 600 Line upright bike is equipped with a 500-watt single-stage drive system and a geometrically balanced seating system to ensure challenging but comfortable rides for years to come.
P84 TOUCHSCREEN CONSOLE
The P84 console features a brilliant 16-inch touchscreen that combines performance, entertainment, and workout variety. Exercisers can enjoy seamless wireless casting that provides access to thousands of third-party fitness and media apps. They can also stream content through fully integrated PlutoTV, Netflix and YouTube apps --putting the content they want, right at their fingertips.
STEP-THROUGH DESIGN
Designed for easy entry, the recumbent bike has a step-through design (14 in / 36 cm wide) with a low step-over height (4 in / 10 cm).
AIR FLEX SEAT BACK
The custom-designed air flex seat features a ventilated panel and unique suspension system for a cool, cushioned ride.
SEAT ADJUSTMENT
The simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike.
EASE OF MAINTENANCE
The easy-to-remove shrouds ensure quick access to the belt-drive system for maintenance and servicing without removing the pedals or crank arms.
PEDALS
The extra wide pedals comfortably accommodate feet of all sizes and feature integrated, adjustable straps to ensure proper pedaling form.
Please note: This treadmill requires a dedicated 120V/20A circuit with a 5-20R NEMA receptacle to operate in a home. GFCI outlets are not supported.
PrecorCast (ChromeCast) and Peloton Classes are not supported for Residential Use. Streaming is limited to Netflix and YouTube (credentials are not saved between workouts). Contact precor.com for Commercial Installations.
Specification
Specification
Equipment Features
Cable Management
Optional
Covers
Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Accessories Holder(s)
Yes
Transport Wheels
Integrated
Universal Seat Mount
No
Frame
Two-step powder-coating process on steel frame.
Bearings
Pedal axles and bearings are designed for smooth operation and exceptional service life.
Seat
Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort.
Seat Adjustment
Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height.
Handlebars
Over-molded handlebar design offers the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser's hands. Touch heart rate is integrated in the upright position.
Pedals
Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.
Biomechanics
To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
Resistance System
Minimum Watts
22 (level 1 at 20 RPM)
Maximum Watts
500 (level 25 at 150 RPM)
Single-Stage Drive System
The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.
Resistance Levels
25
3-Piece Crank
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
3-Phase Generator
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive
Belt drive for smoother, quieter operation and reduced maintenance.
Console Features
Display Type
16 in / 38.1 cm LCD Capacitive Touchscreen
Numeric Keypad
Yes
Motion Controls
Yes
QuickStart™
Yes
Tactile Dome Keys
Yes
Console Language(s)
English, Chinese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
Units Selection
Metric and U.S. Standard
Maximum Pause Time (Pause)
300 seconds (adjustable)
Maximum Workout Time
120 minutes (adjustable)
Electronic Readouts
Resistance LevelTotal Distance, Distance RemainingTotal Calories Burned, Calories/Min, Calories/Hr, Mets, WattsTime Elapsed, Time Remaining, Time in Zone, Segment TimeRPM, Speed, Average SpeedHeart Rate, Average Heart Rate, Max Heart Rate
Preset Programs
Lose Weight4-3 IntervalAerobicFat BurnerHeart Rate ZoneBe FitManual1-1 Interval2-1 Interval4-1 IntervalRolling HillsMountain PeaksHill ClimbHeart Rate ZonePush Performance1-4 Interval1-2 Interval5 K Heart Rate ZoneWatts Target
Heart Rate Monitoring
Touch
Touch heart rate sensors located conveniently on handlebars next to seat.
Telemetry
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
Heart Rate Sensor Advisory
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
Integrated Entertainment Options
Closed Captioning
Yes, CC1-4, Text 1-4 (North America only)
Video decoding
MPEG-2, MPEG-4, H.264
Global TV Support
Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C
Mobile Device Charger
Yes
Reading Rack
Integrated
Personal Viewing System (PVS)
Integrated
Video inputs
RF, HDMI (media adapter option)
Entertainment Cap / Wireless Receiver
N/A
Network Capabilities
RFID / NFC
ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future)
Ethernet
10/100/1000 Base-T
Diagnostics
Ability to set club parameters, e.g. to limit exercise time and pause time.
CSAFE Enabled
N/A
Wifi
802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation
Bluetooth
Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)
Equipment Specifications
Maximum User Weight
350 lb / 159 kg
User Height Range
58 to 78 inches / 147 to 198 cm
Standard Frame Colors
Black Pearl
Equipment Dimensions and Weight
Length
43 in / 109 cm
Width
21 in / 53 cm
Equipment Weight
144 lb / 65 kg
Height
59 in / 150 cm
Shipping Dimensions and Weight
Length
47 in / 119 cm
Width
22 in / 56 cm
Height
32 in / 81 cm
Shipping Weight
166 lb / 75 kg
Power Requirements
Equipment
~100-240V 50/60Hz 1.6 Amps
Personal Viewing Screen (PVS)
N/A
Optional Power Supply
N/A
Warranty
Warranty
Commercial Warranty:• Frame and welds: 7 Years
• Parts: 3 Years
• Labor: 1 Year
Residential Warranty:• Frame and welds: Lifetime
• Parts: 10 Years
• Console: 3 Years
• Labor: 1 Year
