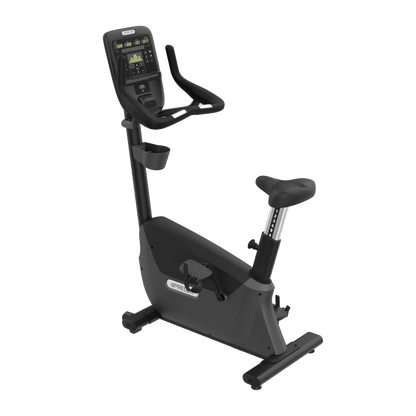

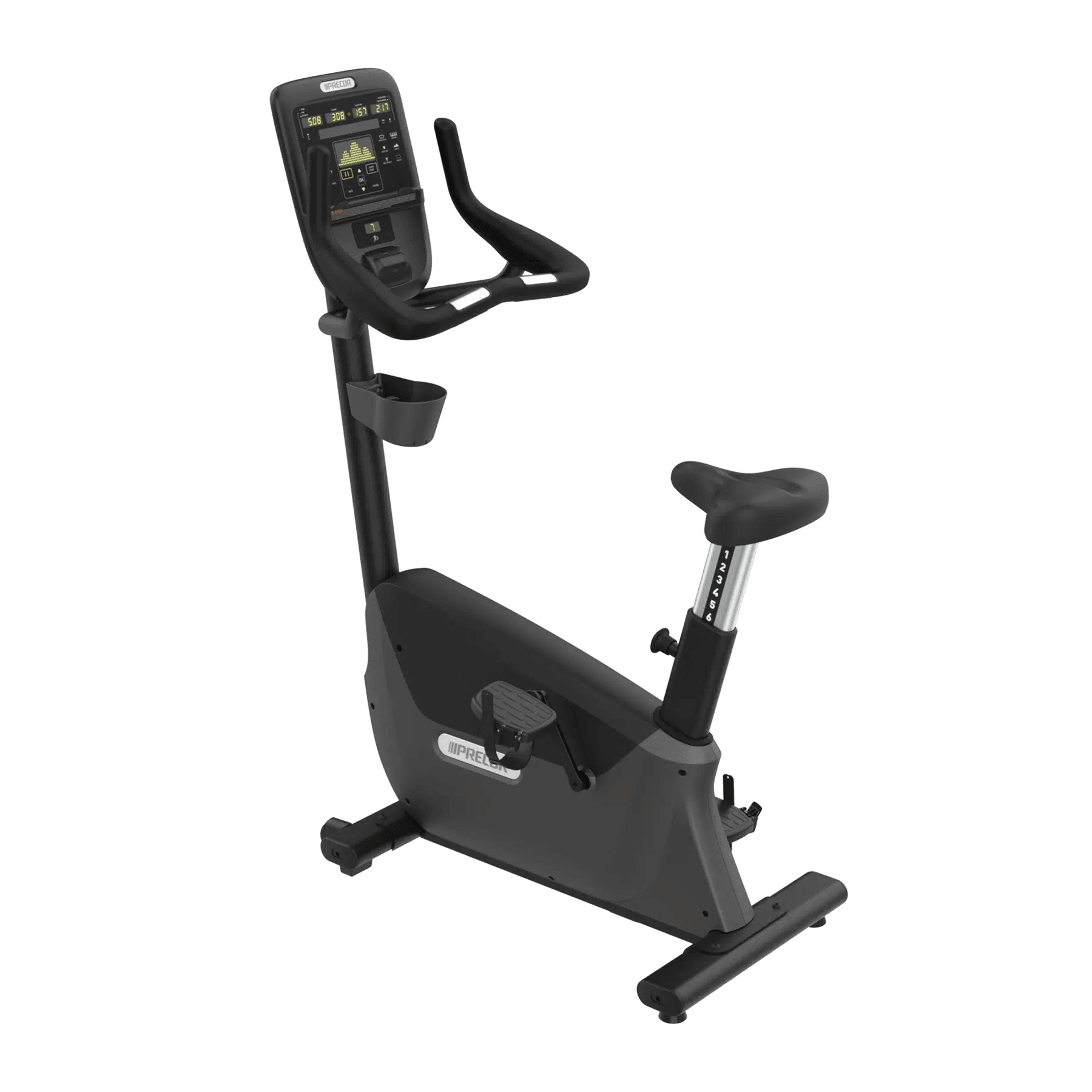

Precor UBK 635 Upright Bike

[SPECIFICATION]

Equipment Features



Cable Management
Optional


Covers
Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.


Accessories Holder(s)
Yes


Transport Wheels
Integrated


Universal Seat Mount
No


Frame
Two-step powder-coating process on steel frame.


Bearings
Pedal axles and bearings are designed for smooth operation and exceptional service life.

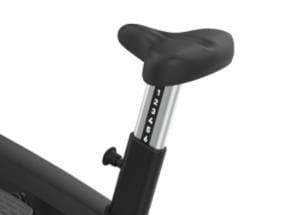

Seat
Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort.


Seat Adjustment
Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height.


Handlebars
Over-molded handlebar design offers the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser's hands. Touch heart rate is integrated in the upright position.

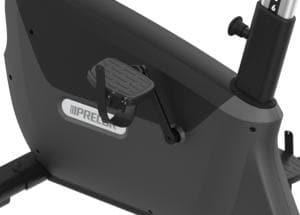

Pedals
Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.


Biomechanics
To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.





Resistance System



Minimum Watts
22 (level 1 at 20 RPM)


Maximum Watts
500 (level 25 at 150 RPM)


Single-Stage Drive System
The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.


Resistance Levels
25


3-Piece Crank
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.


3-Phase Generator
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.


Belt Drive
Belt drive for smoother, quieter operation and reduced maintenance.

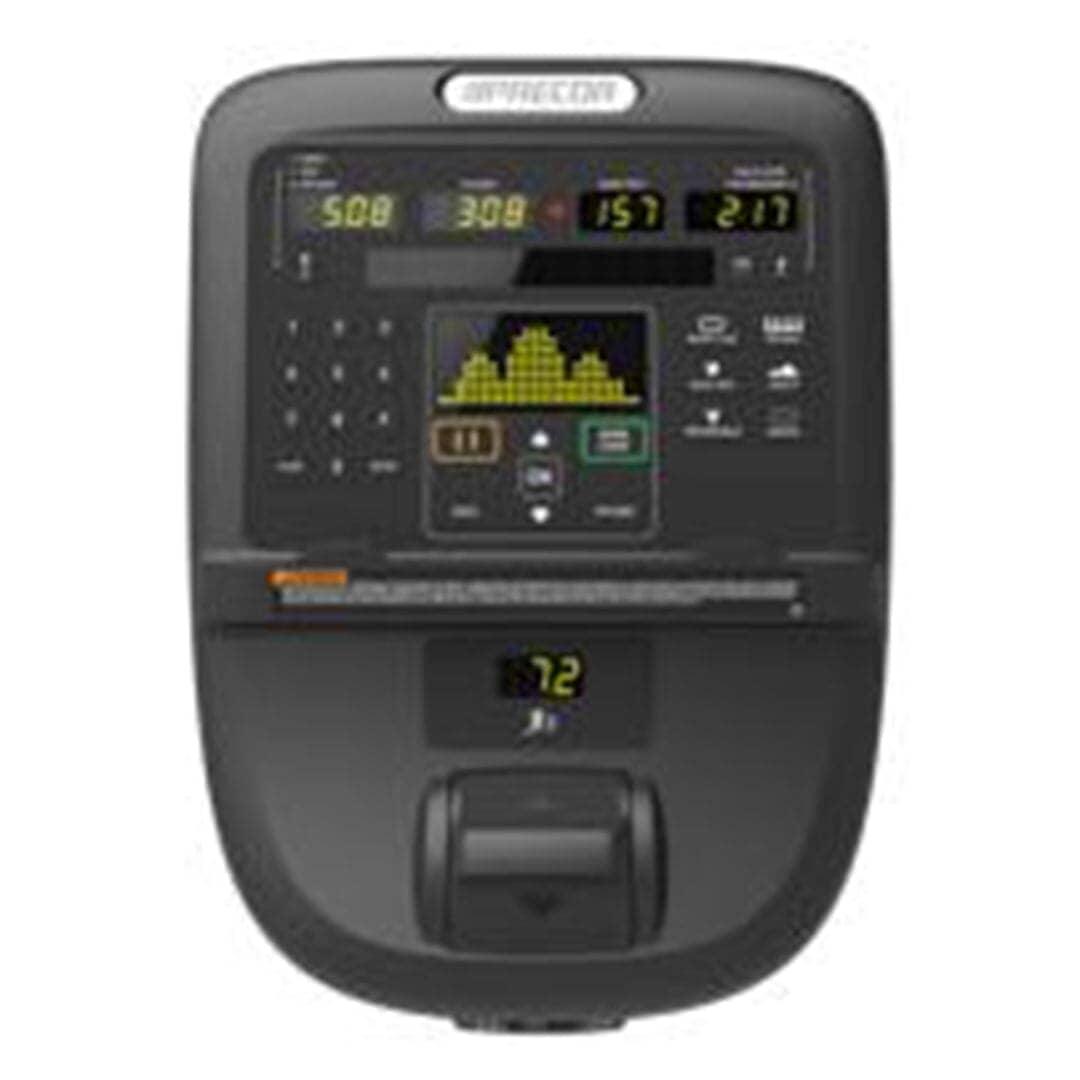

Console Features



Display Type
Advanced LED


Numeric Keypad
Yes


Motion Controls
Yes


QuickStart™
Yes


Tactile Dome Keys
Yes


Console Language(s)
English, French, German, Hebrew, Italian, Japanese, Portuguese, Russian, Spanish


Units Selection
Metric and U.S. Standard


Maximum Pause Time (Pause)
30 seconds (cordless)<br /> 2 minutes - adjustable (using optional plug-in adapter)


Preset Programs
12 programs accessed by 6 keys:
Manual
Variety
Cross Country
Random
Custom Resistance
Weight Loss
Interval
1:1
1:2
1:3
Heart Rate Control
Basic HRC
Performance
Fitness Test
Hill Climb
Watts Control


Electronic Readouts
Resistance Level

Speed, RPM, Distance
Calories
Heart Rate
Time Elapsed, Time Remaining

% Complete, Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR





Heart Rate Monitoring



Touch
Touch heart rate sensors located conveniently on handlebars.


Telemetry
Integrated telemetry heart rate reads heart rate from a user's 5 KHz HR chest strap.


Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.






Integrated Entertainment Options



Closed Captioning
Yes, CC1-4, Text 1-4 (North America only)


Video decoding
MPEG-2, MPEG-4, H.264


Global TV Support
NTSC, ATSC, PAL, SECAM, DVB-T/T2/C, ISDB


Mobile Device Charger
Yes


Reading Rack
Integrated


Personal Viewing System (PVS)
Optional 15.6 in / 39.6 cm screen


Video inputs
RF





Network Capabilities



Diagnostics
Ability to set club parameters, e.g. to limit exercise time and pause time.


CSAFE Enabled
Yes





Equipment Specifications



Standard Shroud Color
Black Pearl


User Height Range
58 to 78 inches / 147 to 198 cm


Maximum User Weight
350 lb / 159 kg





Equipment Dimensions and Weight



Height with PVS
70 inches / 178 cm


Length
43 in / 109 cm


Width
21 in / 53 cm


Height
59 in / 150 cm


Equipment Weight
144 lb / 65 kg





Shipping Dimensions and Weight



Length
47 in / 119 cm


Width
22 in / 56 cm


Height
32 in / 81 cm


Shipping Weight
166 lb / 75 kg





Power Requirements



Equipment
No voltage ratings. Self-Powered


International 240 VAC
Applicable country-specific power cord


U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle


Personal Viewing Screen (PVS)
Powered


Optional Power Supply
Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.





Regulatory



IEC CB
Yes


cTUVus
Yes


FCC
Yes


ETL
Yes


CE
Yes


EN957
Yes

Commercial Warranty:• Frame and welds: 7 Years
• Parts: 3 Years
• Labor: 1 Year
Residential Warranty:• Frame and welds: Lifetime
• Parts: 10 Years
• Console: 3 Years
• Labor: 1 Year
