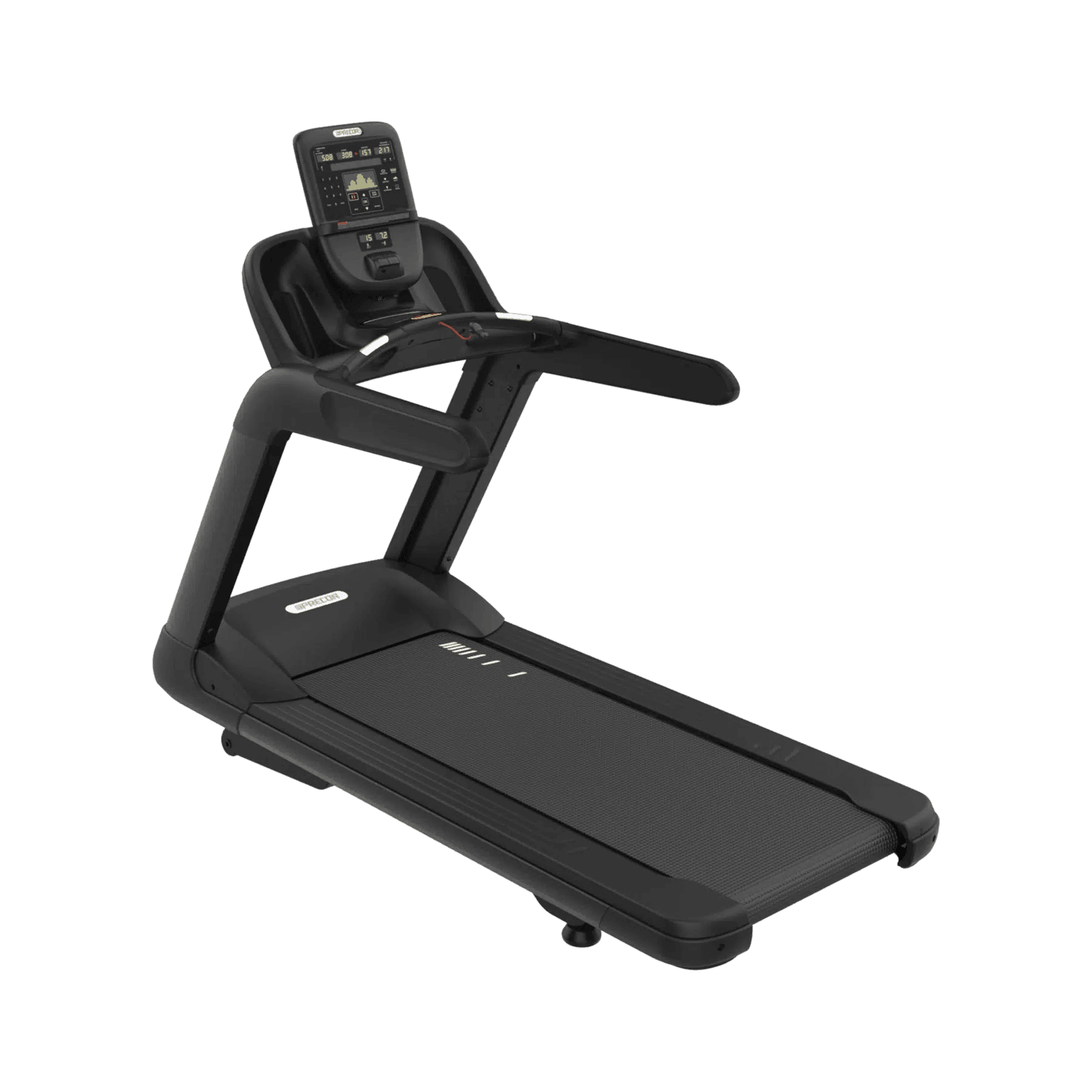

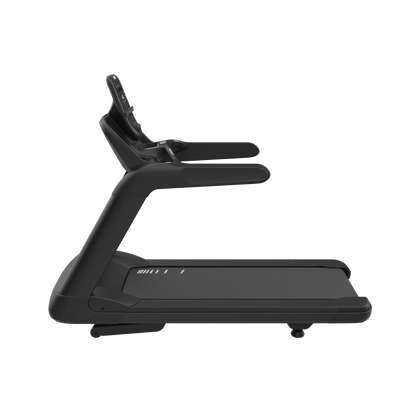

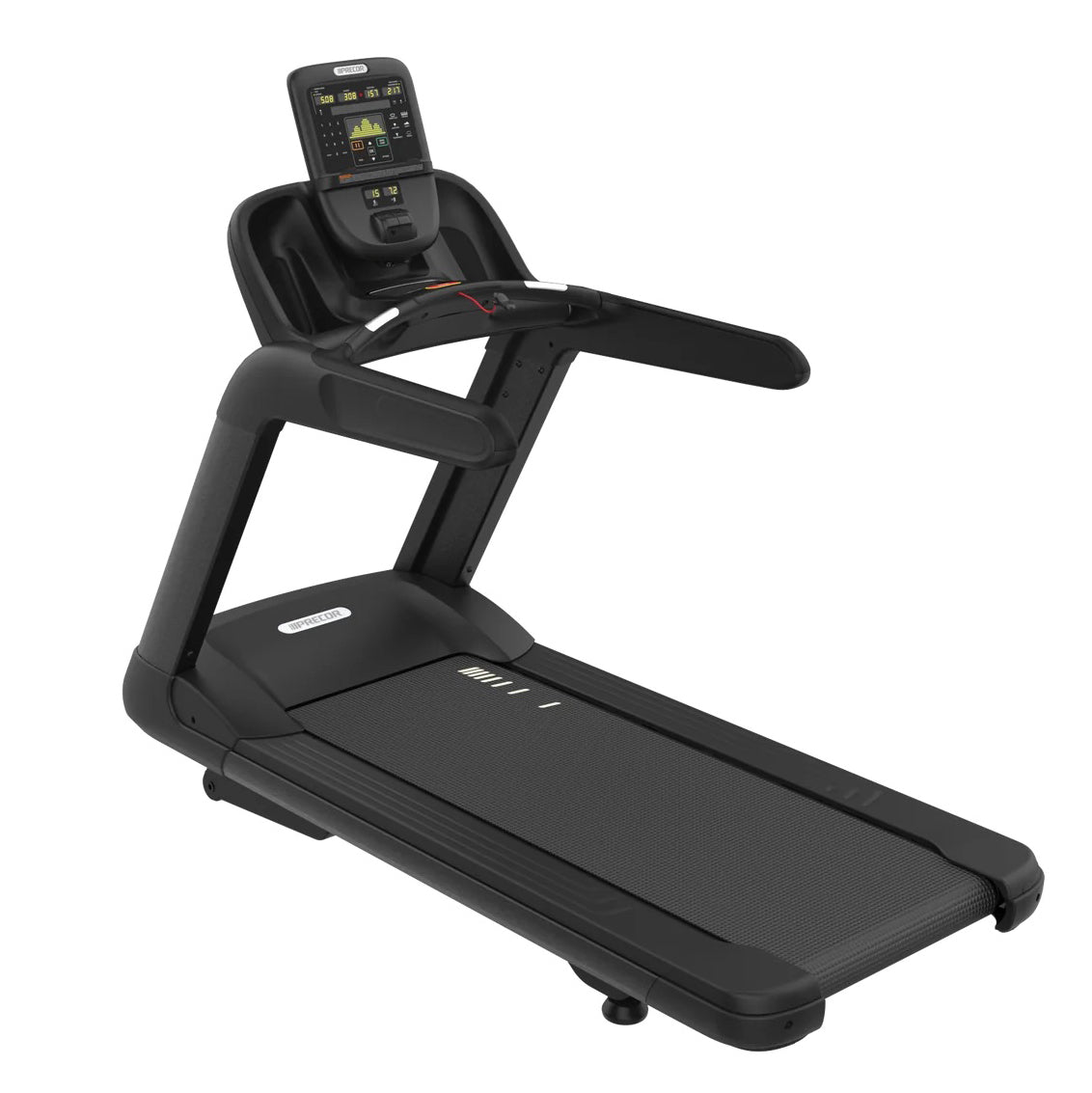

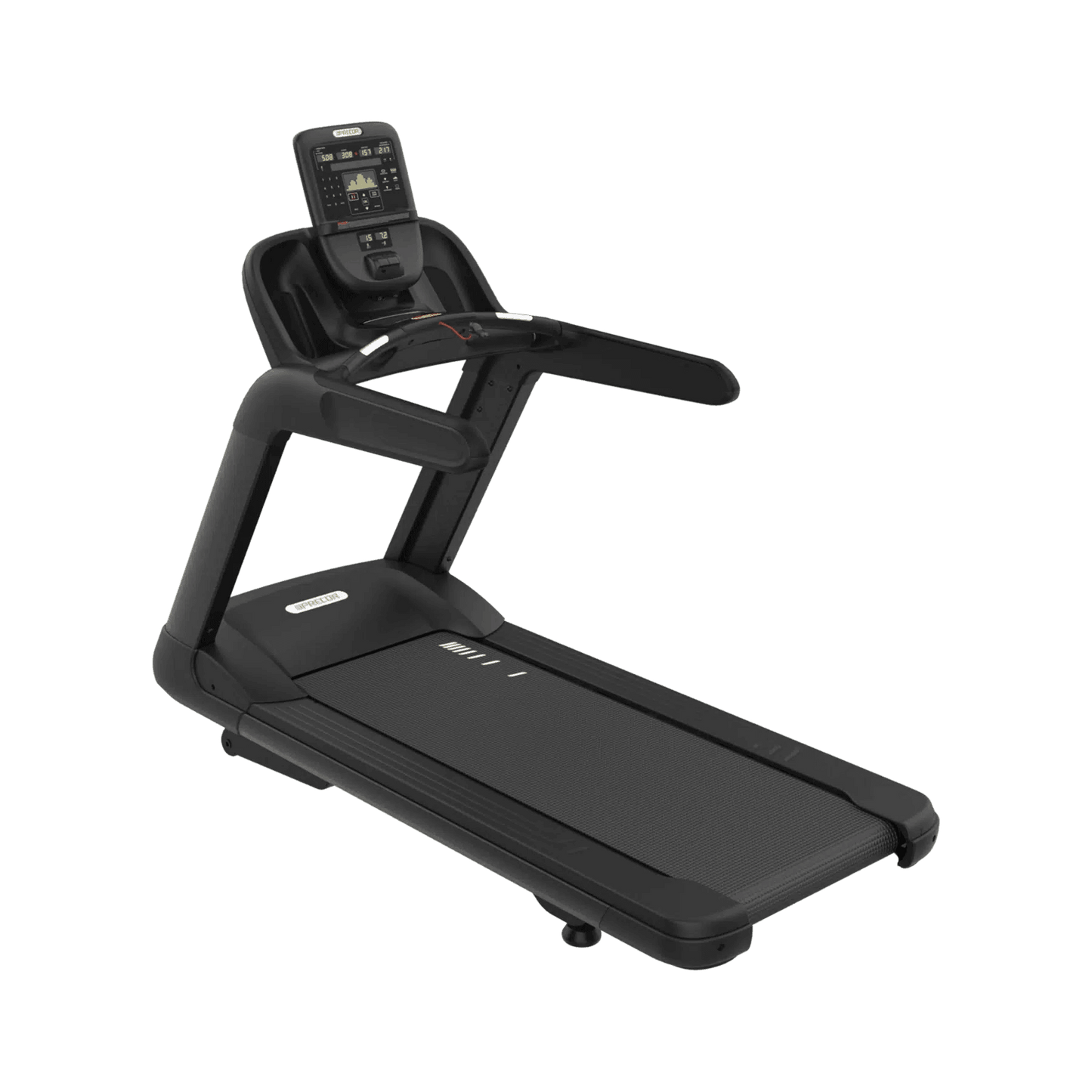

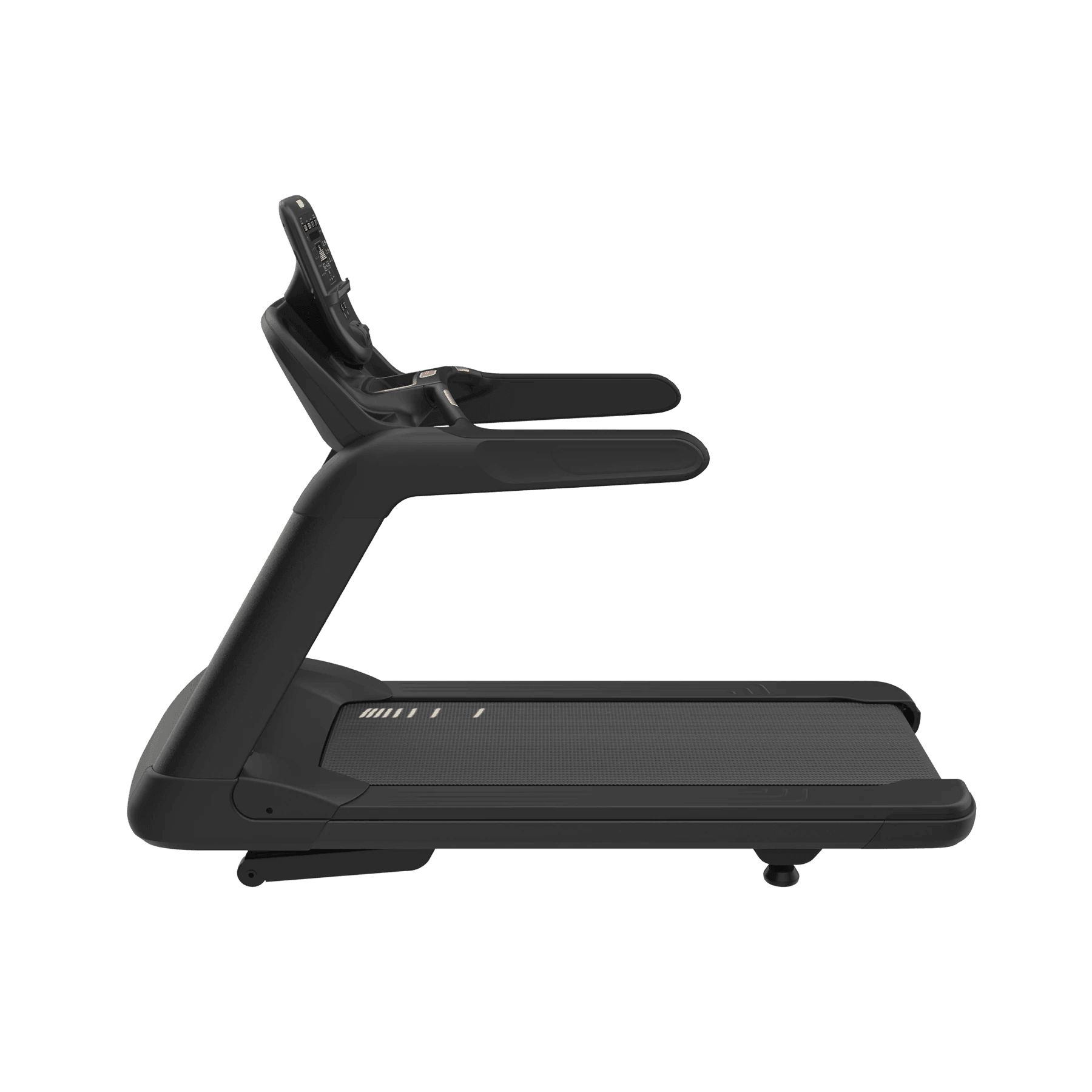

Precor TRM 835 Treadmill

Equipment Features



Ground Effects® Impact Control System
New and improved progressive shock absorption system that absorbs high impact movements and supports a solid and controlled push off.


Ground Effects® Technology
Yes


Integrated Footplant Technology™
Fully complements exercisers natural running stride, reducing joint stress and fatigue.


Motor
IFT-Drive controller works with a new, high efficiency 4 HP AC motor that delivers improved performance and a smooth, natural feel.


Deck and Belt

Seigling E8 multi-ply polyester belt with optimized lubrication integrated into the material, exclusive to Precor.
The running belt is combined with a pre-waxed deck that offers added lubrication especially during the initial break-in period of the treadmill.
The combination of the exclusive optimized running belt with pre-waxed deck yields a long lasting system. However, when the running belt does need to be replaced and the deck flipped, this service can be completed in less than 20 minutes.
The deck is mounted to the GFX system independent of the frame resulting in a stable, quieter treadmill.



Reversible Deck
Yes


Elevation System
Elevation system generates up to 1000 lbs of thrust and operated in compression for reliable operation.


Rollers
Steel tapered rollers keep the belt centered to reduce maintenance and noise.


Frame
New frame design results in an ultra-stable console, solid feel, and quiet operation.


Water Bottle and Accessories Holder
Dual holders with rubber over mold cradles exercisers water bottle to keep it stable. Accessory tray securely supports exercisers cell phone, keeping it front and center, along with ample room for keys, membership card, etc.


Emergency Stop
Safety clip and lanyard attached to the stop switch to immediately turn off power bringing the treadmill to a stop. The lanyard and safety clip can be conveniently attached to a thoughtful tab located underneath the front handrail.


Auto Stop
Yes


Power-Factor Correction
Yes


Transport Wheels
Yes


Cable Management
Optional

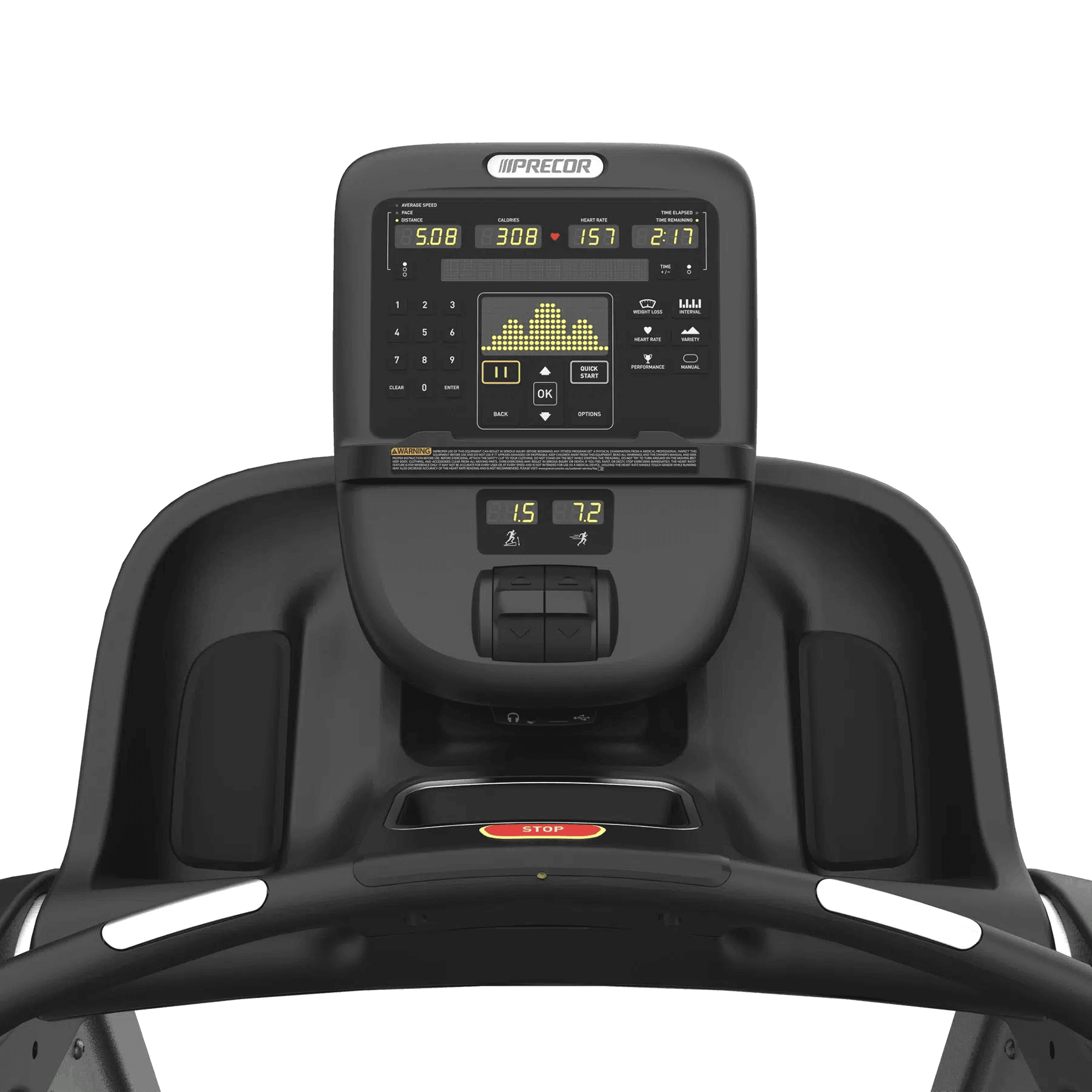

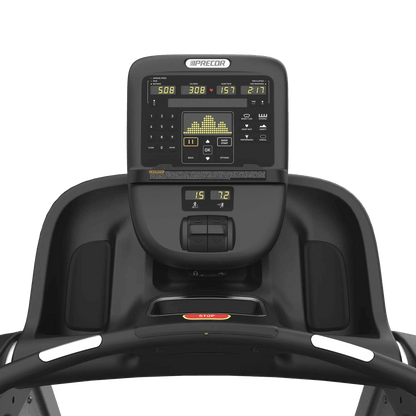

Console Features



Console Type
LED


Tactile Dome Keys
No


QuickStart
Yes


Motion Controls
Yes


Numeric Keypad
Yes


Units Selection
Metric or U.S. Standard


Preset Programs

25 programs accessed directly by 6 buttons: Manual Interval 1:1, 1:2, 1:3, Custom Interval Heart Rate Basic HRC Custom Weight Loss HRC Weight Loss HRC Weight Loss 1 Aerobic 2 Aerobic Custom Weight Loss HRC Weight Loss HRC Variety Random 1 Cross Country  2 Cross Country  1 Gluteal, 2 Gluteal  1 Custom, 2 Custom Performance Track 5K Gerkin Fitness Test USAF PRT, Navy PRT, Army PFT, USMC PFT, Federal Law Enf. PEB WFI Firefighter Test



Console Language(s)

English Dutch German Spanish French Portuguese Italian Romanized Russian



Maximum Pause Time (Pause)
120 seconds


Electronic Readouts

Speed Incline Distance Pace Average Speed Calories Heart Rate Time Elapsed Time Remaining % Complete Time in Zone Segment Time Cals/min Cals/hr Watts METS Target HR Average HR Elevation Gain Workout Summary



Maximum Workout Time
unlimited



Heart Rate Monitoring



Touch
Yes, t ouch heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes.



Telemetry
Yes, e quipped for heart rate telemetry reading using a chest strap.



Chest Strap Transmitter
Works with any Polar compatible 5 KHz chest strap transmitter


Chest Strap Transmitter Included
No


SmartRate®
No



Integrated Entertainment Options



Reading Rack
Integrated


Personal Viewing Screen (PVS) (Specification)
15in. Screen


Entertainment Cap / Wireless Receiver
Optional



Network Capabilities



CSAFE Ready
Yes


FitLinxx Compatible
Yes


Diagnostics
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.



Equipment Specifications



Speed Range
0.5 - 16 mph / 0.8-25.5 km/h


Decline / Incline Range
3% decline to 15% incline


Running Surface (L X W)
60 X 22 inches / 153 X 56 cm


Maximum User Weight (lbs / kg)
400 lbs / 181 kg


Step-up Height
9.5 inches / 24 cm


Roller Diameter
3.5 inches / 8.9 cm


Power Cord Management
ICE 320-C19 inlet supporting Schuko and BSI plugs


Handrail Length (inches / cm)
24 inches / 61 cm



Equipment Dimensions and Weight



Length
83 inches / 211 cm


Width
35 inches / 89 cm


Height
62 inches / 157 cm


Height with PVS
78 inches / 198 cm


Machine Weight (base equipment)
420 lbs / 190 kg



Shipping Dimensions and Weight



Length
Base - 92 inches / 234 cm


Width
Base - 39 inches / 99 cm


Height
Base - 23.5 inches / 60 cm


Shipping Weight
Base - 434 lbs / 197 kg


Length 2
Dash - 42 inches / 107 cm


Width 2
Dash - 39.5 inches / 100 cm


Height 2
Dash - 24 inches / 61 cm


Shipping Weight 2
Dash - 67 lbs / 30 kg


Shipping Configuration (for non-installed purchases)
3 box configuration: Base, Dash, and Console



Power Requirements



Equipment
Powered


Personal Viewing Screen (PVS)
Powered


U.S. & Canada 120 VAC
Dedicated 120V/20A circuit with 5-20R NEMA receptacle


U.S. & Canada 240 VAC
Dedicated 220V- 240V/20A circuit with 6-20R NEMA receptacle


International 240 VAC
IEC 320-C19 inlet supporting applicable country-specific power cord


Cord Length
12 ft / 3.7 m



Regulatory



FCC
FCC


ETL
ETL


CE
CE


EN957 / ASTM
EN957 / ASTM

Commercial Warranty: Frame and welds: 7 Years Parts: 3 Years Labor: 1 Year Residential Warranty: Frame and welds: Lifetime Parts: 10 Years Console: 3 Years Labor: 1 Year
