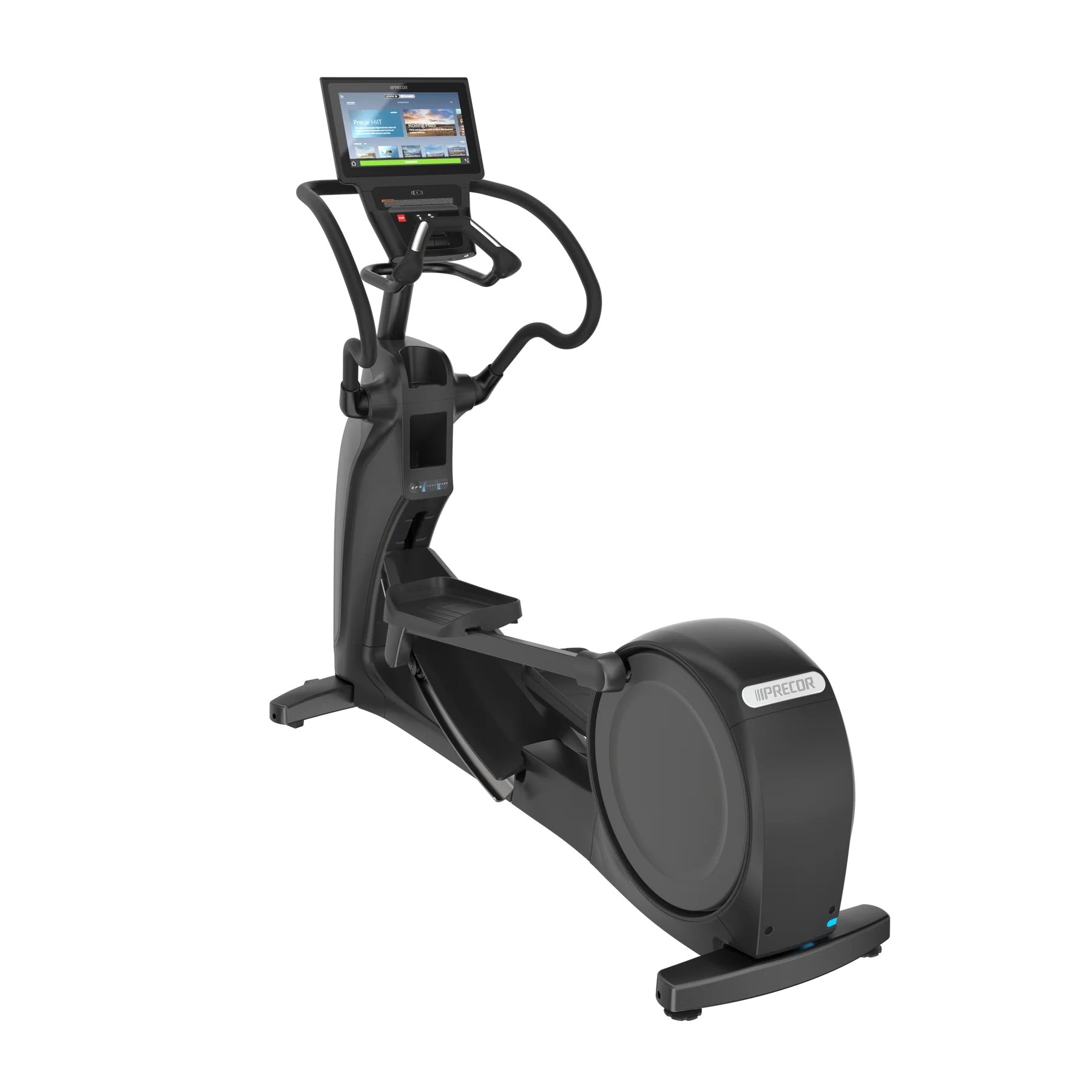

Precor EFX 883 Elliptical (P84)

The Precor EFX® 883 with Converging CrossRamp® combines essential reliability and ease-of-use with a natural, low-impact stride to add value to your facility. Design enhancements ensure easy cleaning and maintenance for you, while the unique adjustable Converging CrossRamp® technology and fixed handlebars deliver a comfortable lower body workout for your exercisers.

Product Features:

CONVERGING CROSSRAMP®

Precor's patented converging footpath design and incline adjustments between 10 - 35 degrees, along with 20 levels of resistance, give exercisers a challenging workout with a more natural feeling stride. Exercisers easily target glutes, quadriceps, and calves to create a well-rounded workout tailored to their fitness goals. Large open pedals, a low step-over height, and an accessible 10-degree starting angle make it simple for beginners to get started, while higher inclines and resistance challenge advanced exercisers.

HANDLEBARS

Fixed handlebars allow exercisers to focus on lower body workouts  at higher resistance levels or challenge muscle stabilizers during  hands-free training.

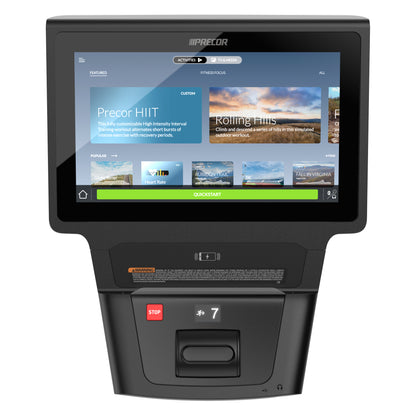

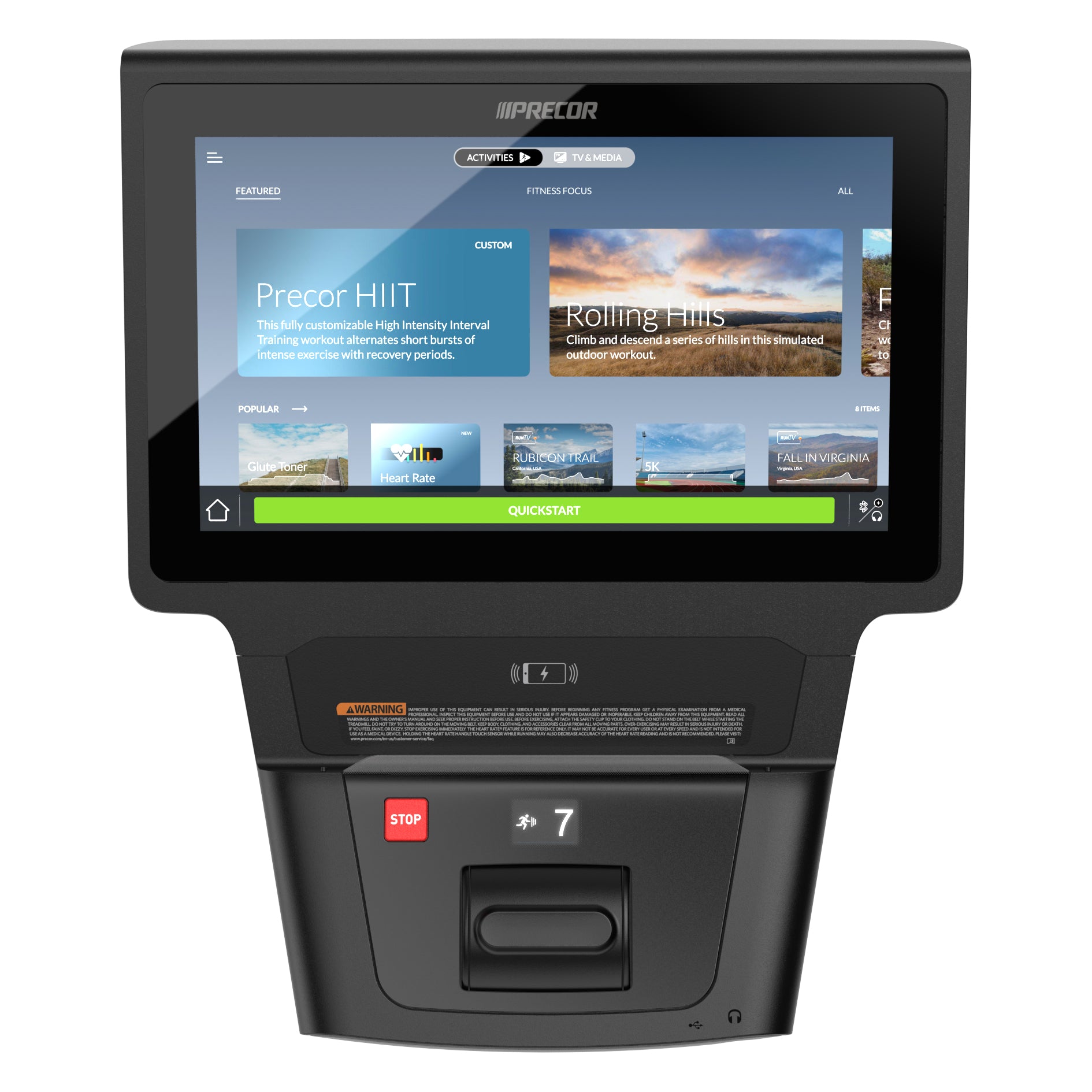

P84 TOUCHSCREEN CONSOLE

The P84 console features a brilliant 16-inch touchscreen that combines performance, entertainment, and workout variety. Exercisers can enjoy seamless wireless casting that provides access to thousands of third-party fitness and media apps. They can also stream content through fully integrated PlutoTV, Netflix and YouTube apps—putting the content they want, right at their fingertips.

COVERED REAR DRIVE HOUSING

Easy to maintain with a covered ramp and rear drive housing that enable quick access for cleaning. Black Pearl

ACTIVE STATUS LIGHT

Alerts staff at a glance when the EFX needs maintenance or service.

PrecorCast (ChromeCast) is not supported for Residential Use. Streaming is limited to Netflix and YouTube (credentials are not saved between workouts). Contact precor.com for Commercial Installations.

Equipment Features



Water Bottle and Accessories Holder
Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories.


Covers
Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints. Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals. Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to lift assembly.


Transport Wheels
Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor.


Bearings
Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel.


Foot Pedals
Oversized, polypropylene foot pedals fit your largest user and are easy to clean.


Ramp
Converging Adjustable CrossRamp®


Biomechanics
Biomechanics validated by Western Washington University for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user.


Ramp Angle
10 to 35


Upper Body Handlebars
Fixed handlebars


CrossRamp® Technology
Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels.





Resistance System



Minimum Watts
18


Maximum Watts
720


Resistance System
Durable, 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM).


Resistance Levels
1 - 20





Console Features



Numeric Keypad
Yes, in software


Motion Controls
Yes - Resistance and Incline


Tactile Dome Keys
Vol up/down, mute, Channel up/down, pause workout


QuickStart™
Yes


Console Language(s)
English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish


Units Selection
Metric or U.S. Standard


Maximum Workout Time
120 minutes (60 default)


Maximum Pause Time (Pause)
300 seconds (120 default)


Electronic Readouts

Key Panel:
Resistance
Incline
User Interface:
Total Distance, Distance Remaining
Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts
Time Elapsed, Time Remaining, Segment Time
Strides/Min, Avg Strides/Min, Total Strides
Heart Rate, Average Heart Rate, Max Heart Rate


Featured Workout of the Day
Yes


Video Decoding
MPEG-2, MPEG-4, H.264


Console Type
15 in LCD Capacitive Touch Screen


Preset Programs

Lose Weight
4-3 Interval
Aerobic
Aerobic Plus
Fat Burner
Heart Rate Zone
Be Fit
Manual
1:1 Interval
2:1 Interval
4:1 Interval
Total Body Interval
Rolling Hills
Mountain Peaks
Heart Rate Zone
Get Toned
Glute Toner
Glute Toner Plus
Leg Sculpt
Leg Sculpt Plus
Push Performance
1-4 Interval
1-2 Interval
5K
Heart Rate Zone
Test Your Fitness
Fitness Test





Network Capabilities



Ethernet
10/100/1000 Base-T


Diagnostics
Ability to pull log files, set club parameters, e.g. limit exercise time, set default language and pause time.


Wifi
802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation





Heart Rate Monitoring



Touch
Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes.


Telemetry
Equipped for heart rate telemetry reading using a chest strap.


Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.






Integrated Entertainment Options



Closed Captioning
Yes, CC1-4, Text 1-4 (North America only)


Video decoding
MPEG-2, MPEG-4, H.264


Global TV Support
Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C


Mobile Device Charger
Yes


Reading Rack
Standard


Personal Viewing System (PVS)
Integrated


Personal Viewing Screen (PVS) (Specification)
15 in LCD Capacitive Touch Screen Supports NSTB, PAK, PAL BG Standards, Closed Caption


Video inputs
RF, HDMI (media adapter only - future)





Equipment Specifications



Stride Length at Minimum Incline (inches / cm)
21 inches / 54 cm


Stride Length at Maximum Incline (inches / cm)
25 inches / 63 cm


Maximum User Weight
350 lbs / 159 kg


Minimum Space Between Foot Pedals (inches / cm)
1.5 inches / 3.8 cm


Foot Pedal Dimensions (inches / cm)
16 x 8 inches / 40.6 x 20.3 cm


Step-up Height (footplate at lowest position)
8 inches / 20 cm


Standard Frame Colors
Black Pearl





Equipment Dimensions and Weight



Length
80 inches / 203 cm


Width
30 inches / 76 cm


Equipment Weight
340 lbs / 154 kg


Height
72 inches / 183 cm





Shipping Dimensions and Weight



Length
85 inches / 216 cm


Width
30.75 inches / 78 cm


Height
28.125 inches / 71.4 cm


Shipping Weight
396 lbs / 180 kg





Power Requirements



Equipment
Powered


International 240 VAC
Applicable country-specific power cord


U.S. & Canada 240 VAC
220V-240V/15A circuit with 5-15R NEMA receptacle


U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle


Cord Length
12 feet / 3.7 meters




Regulatory



cTUVus
Yes


IEC CB
Yes


FCC
Yes


ETL
Yes


CE
Yes


EN957
Yes


ASTM
Yes

Commercial Warranty:

• Frame and welds: 7 Years

• Parts: 3 Years

• Labor: 1 Year



Residential Warranty:

• Parts: 10 Years

• Console: 3 Years•
• Labor: 1 Year

• Frame: Lifetime
