Overview
| Covers | Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints.
Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals. Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to lift assembly. |
| Accessory Holder(s) | Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories. |
| Transport Wheels | Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor. |
| Biomechanics | Biomechanics validated by a Washington state university for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user. |
| Bearings | Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel. |
| Ramp | Converging Adjustable CrossRamp® |

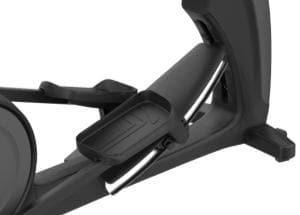

| Foot Pedals | Oversized, polypropylene foot pedals fit your largest user and are easy to clean. |
| Ramp Angle | 10-35° |
| Upper Handlebars | Fixed Handlebars |
| CrossRamp® Technology | Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels. |
| CrossRamp® Technology | Adjustable |
| Resistance System | Durable, proven 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM). |
| Resistance Levels | 1 - 20 |
| Minimum Watts | 18 watts |
| Maximum Watts | 720 watts |

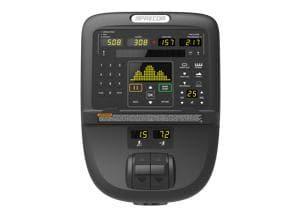

| Console Type | Large LED Display |
| Tactile Dome Keys | Yes |
| QuickStart™ | Yes |
| Motion Controls | Yes |
| Numeric Keypad | Yes |
| Muscle Monitor | Shows muscle recruitment related to change in CrossRamp |
| Units Selection | Metric and U.S. Standard |
| Preset Programs | Manual Interval Interval Total Body Interval Variety Cross Country 1 Gluteal 2 Gluteal Custom Performance Hill Climb Fitness Test 1 Cross Training 2 Cross Training 3 Cross Training Navy Fitness Test Heart Rate Basic HRC Weight Loss |
| Console Language(s) | Dutch, English, French, German, Italian, Russian, Spanish |
| Maximum Pause Time (Pause) | 30 seconds |
| Electronic Readouts | Resistance Level Incline Level Distance Strides / min Total Strides Calories Heart Rate Time Remaining Time Elapsed Time in Zone Segment Time Remaining Average Speed Calories / min Calories / hour Watts METS Target HR Average HR % Complete Workout Profile Workout summary |
| Maximum Workout Time | unlimited |
| Touch | Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease of use by exercisers of all sizes. |
|
|
Yes. Equipped for heart rate telemetry reading using a chest strap. |
| SmartRate® | No |
| Reading Rack | Integrated |
| Personal Viewing Screen (PVS) (Specification) | 15in. Screen (Optional) |
| Entertainment Cap / Wireless Receiver | Optional |
| CSAFE Ready | Yes |
| FitLinxx Compatible | Yes |
| Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
| Maximum User Weight (lbs / kg) | 350 lbs / 159 kg |
| Step-up Height (footplate at lowest position) | 8 inches / 20 cm |
| Foot Pedal Dimensions (inches / cm) | 16 X 8 inches / 40.6 X 20.3 cm |
| Minimum Space Between Foot Pedals (inches / cm) | 1.5 inches / 3.8 cm |
| Stride Length at Minimum Incline (inches / cm) | 21 inches / 54 cm |
| Stride Length at Maximum Incline (inches / cm) | 25 inches / 63 cm |
| Length | 80 inches / 203 cm |
| Width | 30 inches / 76 cm |
| Height | 67 inches / 170 cm |
| Height with PVS | 82 inches / 208 cm |
| Machine Weight (base equipment) | 340 lbs / 154 kg |
| Length | 85 inches / 216 cm |
| Width | 30.75 inches / 78 cm |
| Height | 28.125 inches / 71.4 cm |
| Shipping Weight | 396 lbs / 180 kg |
| Equipment | Self-Powered |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| U.S. & Canada 240 VAC | N/A |
| International 240 VAC | Applicable country-specific power cord |
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 / ASTM | EN957 / ASTM |
Warranty Information
Residential Warranty: Parts: 10 Years Labor: 1 Year Frame: Lifetime Commercial Warranty: Parts: 2 Years Labor: 1 Year Frame: 7 Years
