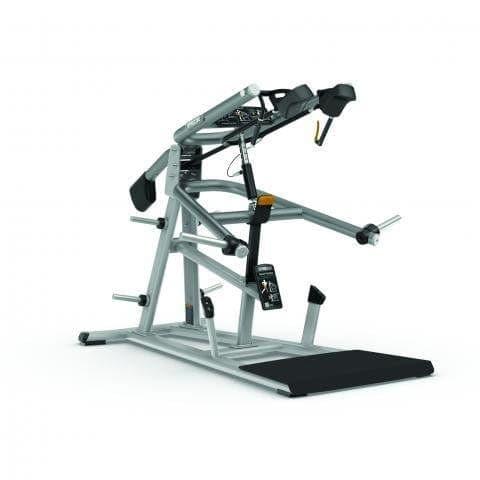

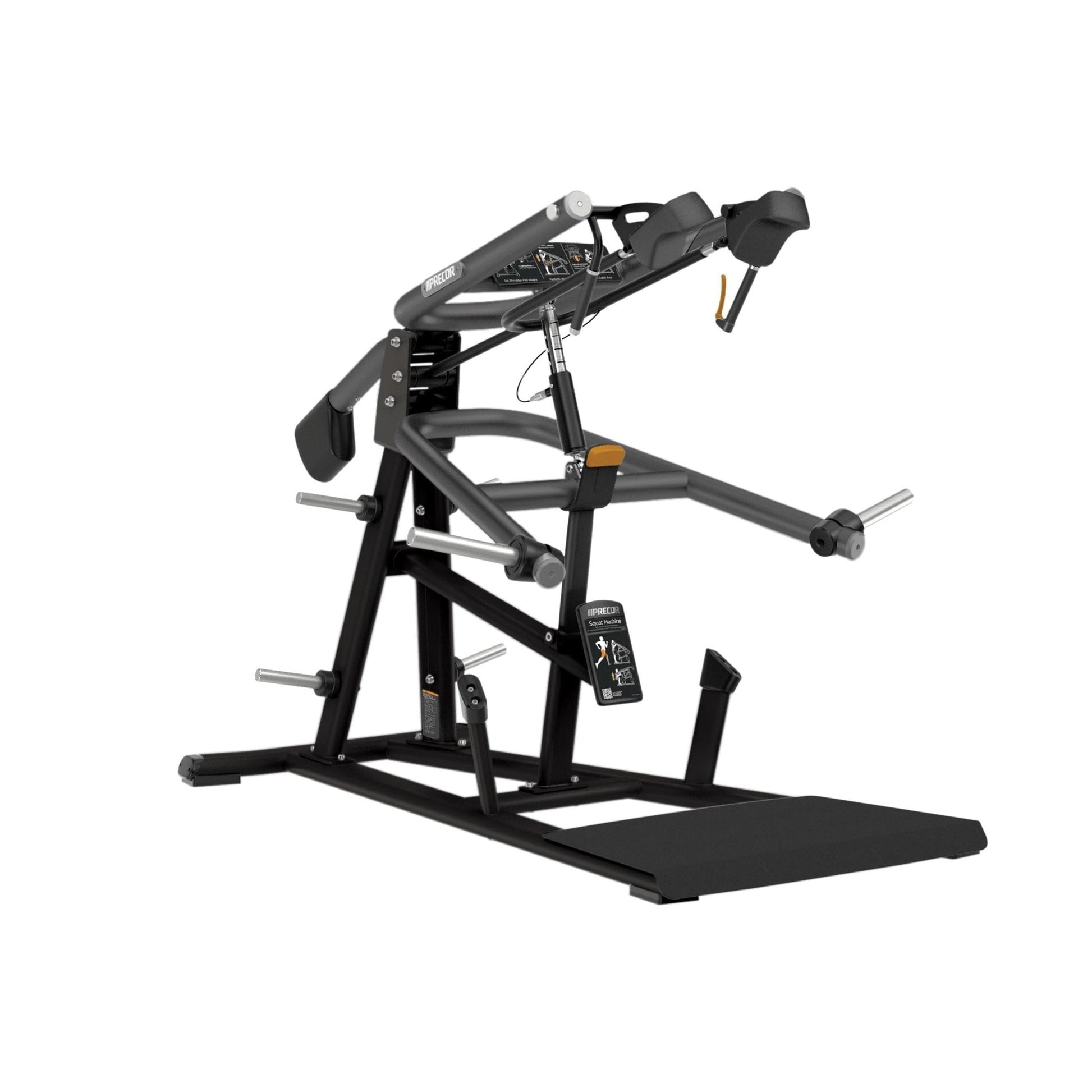

Precor Discovery Series Squat Machine (DPL0624)
Precor Discovery Series Squat Machine (DPL0624)
Couldn't load pickup availability
Description
Description
The unique pivot system and open, intuitive squat exercise positioning of the Discovery™ Series Plate Loaded Squat Machine most closely mimics the muscular demands and user stabilization of a barbell squat, while providing the control needed to master the squat movement.
- Intuitive, open design most closely mimics a barbell squat.

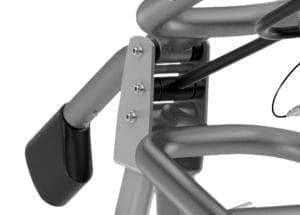

- Unique pivot design requires increased user balance and stabilization.

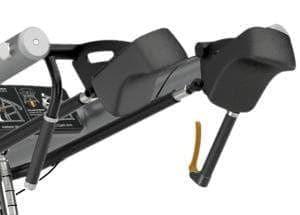

- Easy fingertip adjustments and tracking shoulder pads enhance fit and comfort.
[SPECIFICATION]
Equipment Features
Rubber Feet | Yes |
Instructional Placard | Yes |
Frame and Finish | Oversized tubes are 11-gauge steel and fully welded in all structural areas. Powder coated frames. |
Adjustments | Five (5) start position adjustments are fingertip controlled and cover height ranges of: • 4’-10” to 5’-6” • 5’-3” to 5’-9” • 5’-5” to 6’-0” • 5’-8” to 6’-2” • 5’-11” to 6’-5” |
Equipment Specifications
Standard Frame / Movement Arm or Carriage Colors |
Frame: Black Pearl; Movement Arm: Metallic Ash Frame: Gloss Metallic Silver; Movement Arm: Metallic Ash |
Stocked Upholstery Colors | All Spice, Black, Grey |
Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |
Max Load Weight | 600 lb. / 272 Kg |
Weight Storage Horns | Four (4) Olympic weight storage horns provide 7.5 inches (19 cm) effective length each for weight plate storage and are undersized (1-1/2 inches / 38 mm) so plates don't bind when loading / unloading |
Starting Weight | 40 lb. / 18.14 Kg |
Equipment Dimensions and Weight
Length | 91 inches / 230 cm |
Width | 67 inches / 170 cm |
Height | 61 inches / 155 cm |
Equipment Weight | 498 lb / 226 kg |
Product Working Area Dimensions
Length | 115 inches / 292 cm |
Width | 91 inches / 231 cm |
Height | 61 inches / 155 cm |
Specification
Specification
Equipment FeaturesRubber FeetYesInstructional PlacardYesFrame and FinishOversized tubes are 11-gauge steel and fully welded in all structural areas. Powder coated frames.AdjustmentsFive (5) start position adjustments are fingertip controlled and cover height ranges of:
• 4’-10” to 5’-6”
• 5’-3” to 5’-9”
• 5’-5” to 6’-0”
• 5’-8” to 6’-2”
• 5’-11” to 6’-5”Equipment SpecificationsStandard Frame / Movement Arm or Carriage ColorsFrame: Black Pearl; Movement Arm: Metallic Ash
Frame: Gloss Metallic Silver; Movement Arm: Metallic AshStocked Upholstery ColorsAll Spice, Black, GreyAdditional Upholstery Options (Additional lead time applies)American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, SlateMax Load Weight600 lb. / 272 KgWeight Storage HornsFour (4) Olympic weight storage horns provide 7.5 inches (19 cm) effective length each for weight plate storage and are undersized (1-1/2 inches / 38 mm) so plates don't bind when loading / unloadingStarting Weight40 lb. / 18.14 KgEquipment Dimensions and WeightLength91 inches / 230 cmWidth67 inches / 170 cmHeight61 inches / 155 cmEquipment Weight498 lb / 226 kgProduct Working Area DimensionsLength115 inches / 292 cmWidth91 inches / 231 cmHeight61 inches / 155 cm
Warranty
Warranty
• 10 years frame and welds
• 5 years parts
• 1 year surface finish
• 6 months limited parts
• 1 year labor
Shipping methods available at checkout
Economy
Economy
$621/itemOur economy shipping option. Items usually ship within 4+ weeks via freight handler, and home delivery is typically 6+ weeks from date of order. Customer is contacted ahead of time to schedule curbside delivery.
*Does not include inside delivery, assembly or installation (curbside delivery only).
Delivery & Assembly
Delivery & Assembly
$931/itemItems usually ship within 4+ weeks via freight handler, and home delivery is typically 6+ weeks from date of order.
After garage delivery, a team of technicians will schedule full assembly and installation, including bringing the equipment into the home and up or down any stairs.
*This is the best option for customers without driveway or garage access, such as apartments where equipment must be delivered up or down stairs.
Come and see this product in store | Find your nearest store
