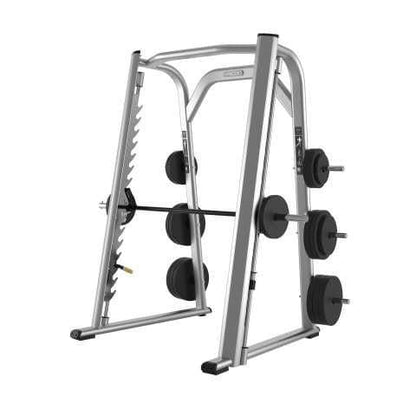

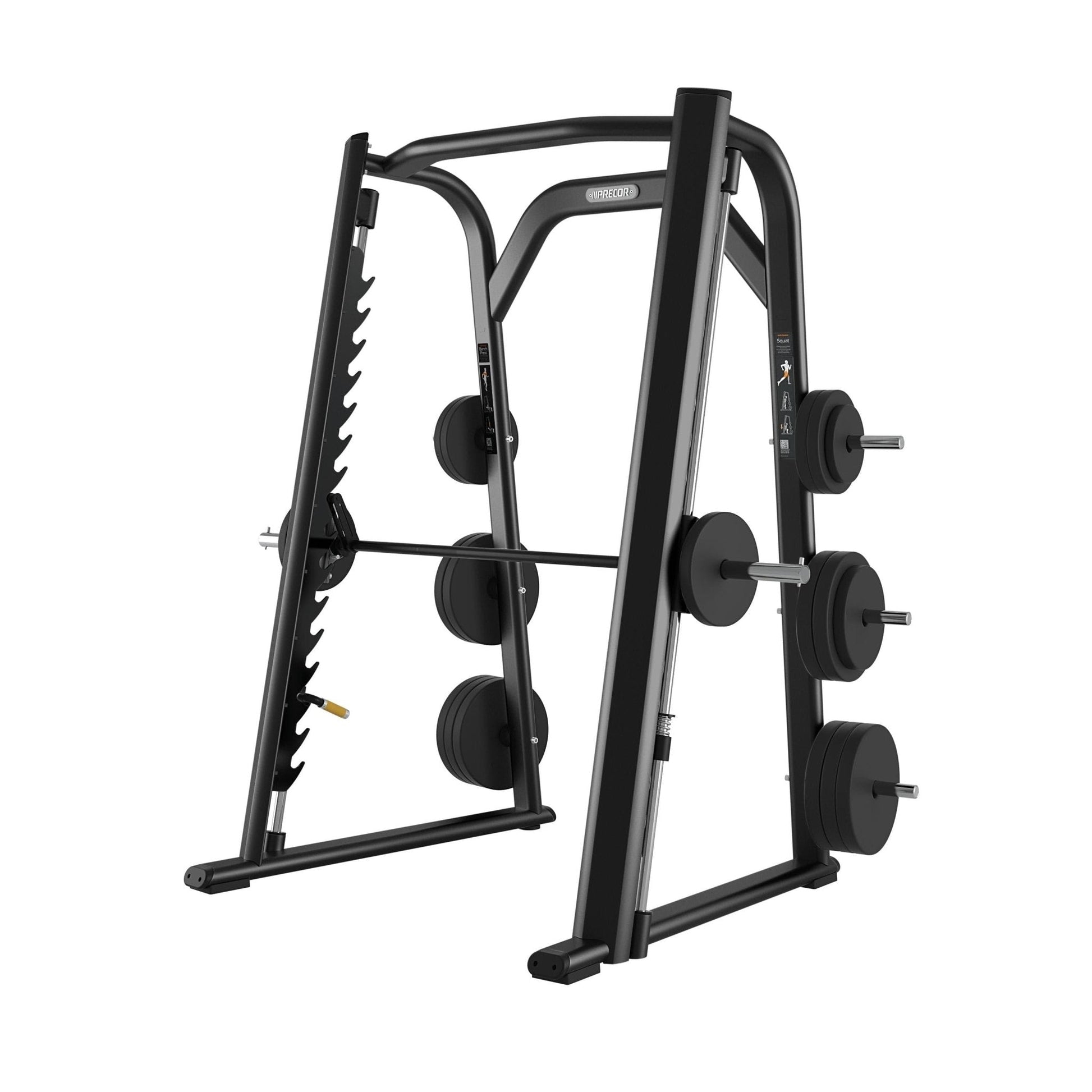

Precor Discovery Series Smith Machine (DPL0802)
Precor Discovery Series Smith Machine (DPL0802)
Couldn't load pickup availability
Description
Description
The bold, sleek design of the Discovery™ Series Smith Machine features high head clearance and a clean, walk-through design. The 11-degree angle of the Smith Machine and innovative bar design produces a smooth, natural feel and an exceptional user experience.
- Clean, bold walk through design
- 11 degree frame angle
- Low start weight of 25 lb. / 11.3 kg and 20% less high wear parts.
[SPECIFICATION]
Equipment Features
Standard Features | ● Adjustable safety stops easily accessed from the user position ● Six weight plate storage horns ● Foot pads and heavy duty levelor device acomodates uneven floor surfaces |

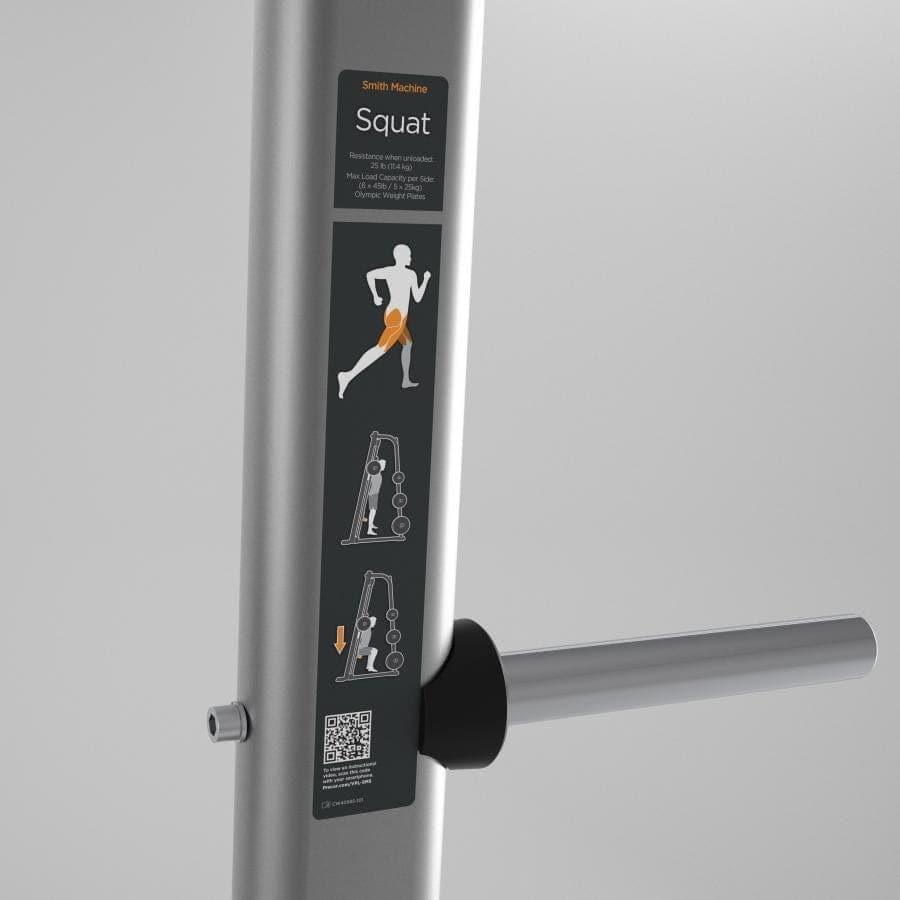

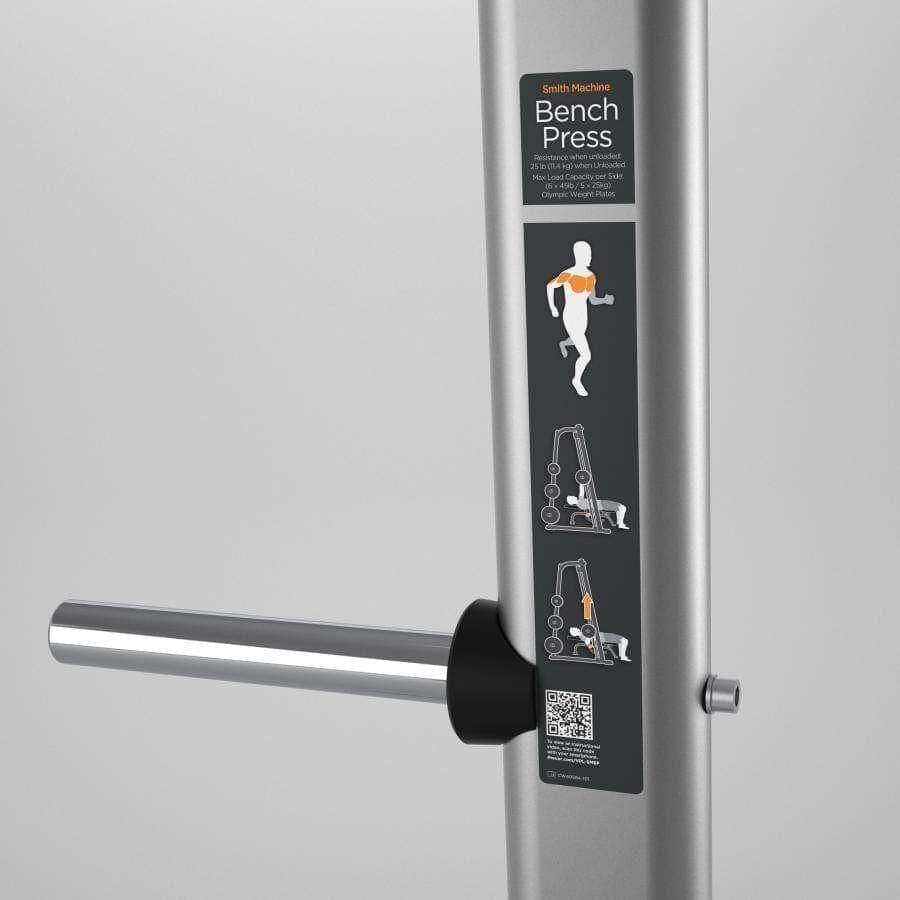

Instructional Placard | Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone. |

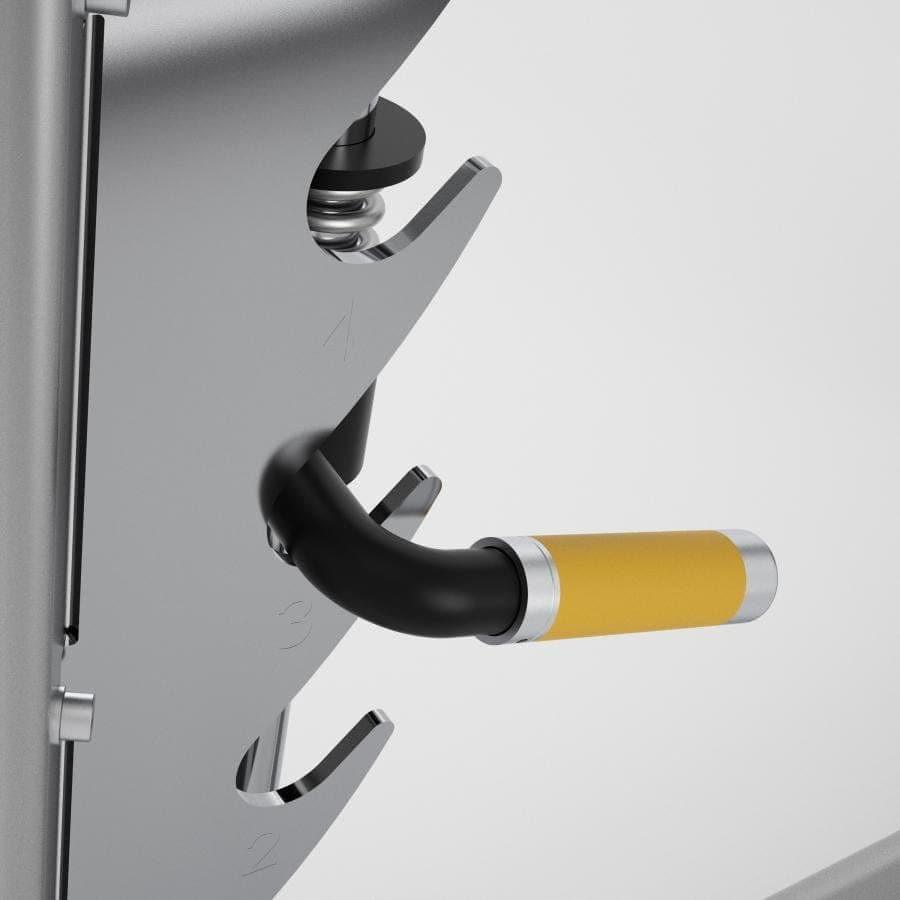

Adjustments | 16 Bar hooks @ 4 in / 102 mm increments |
Bolt Down Capability | Yes |
Equipment Specifications
Grip Diameter | 1.375 in / 35 mm |
Frame | The frame is 11 gauge (.120”) 6x2-inch trapezoidal steel tubing electro-welded to 4.55x2.28x.113-inch thick bent flat oval steel tubing. The weight bar is 4130 cold drawn seamless steel tube, 1.375” diameter x .095” thick. |
Standard Frame / Movement Arm or Carriage Colors |
Frame: Black Pearl; Movement Arm: Metallic Ash Frame: Gloss Metallic Silver; Movement Arm: Metallic Ash |
Stocked Upholstery Colors | All Spice, Black, Grey |
Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |

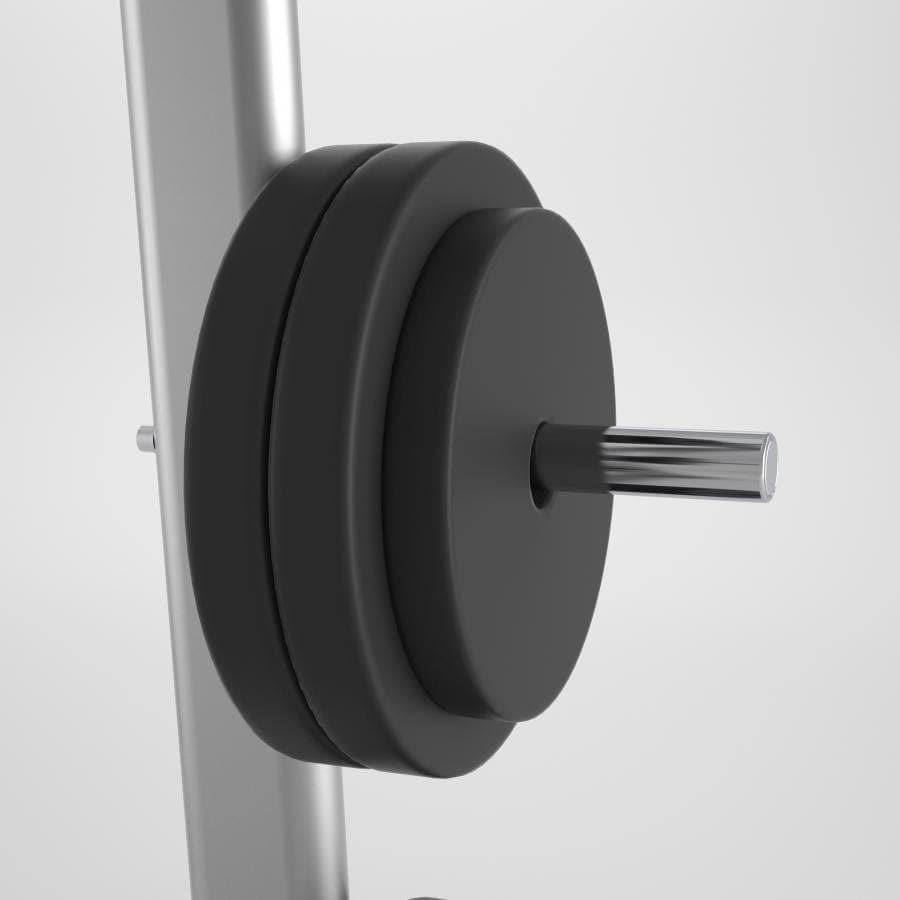

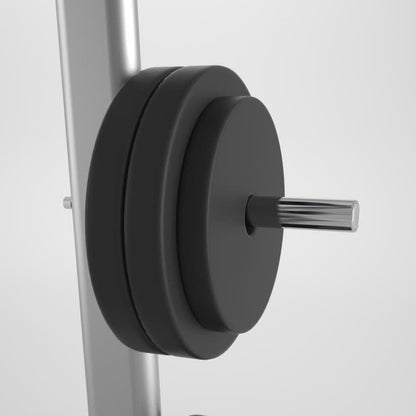

Weight Storage Horns | Six Storage horns at 10 in / 25 cm length each (three per side) |
Max Load Weight | 600 lb / 272 kg |
Starting Weight | 25 lb / 11.3 kg |
Equipment Dimensions and Weight
Length | 56 in / 142 cm |
Width | 84 in / 214 cm |
Height | 90 in / 229 cm |
Shipping Dimensions and Weight
Length | 56 in / 142 cm |
Width | 84 in / 214 cm |
Height | 90 in / 229 cm |
Shipping Weight | 395 lb / 179 kg |
Specification
Specification
<h4>Equipment Features</h4><figure class="table" style="width:682px;"><table style="background-color:rgb(235, 235, 235);border:1px solid rgb(229, 229, 229);"><tbody><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Standard Features</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">● Adjustable safety stops easily accessed from the user position<br>● Six weight plate storage horns<br>● Foot pads and heavy duty levelor device acomodates uneven floor surfaces</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Instructional Placard</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone.</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Adjustments</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">16 Bar hooks @ 4 in / 102 mm increments</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Bolt Down Capability</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">Yes</td></tr></tbody></table></figure><h4>Equipment Specifications</h4><figure class="table" style="width:682px;"><table style="background-color:rgb(235, 235, 235);border:1px solid rgb(229, 229, 229);"><tbody><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Grip Diameter</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">1.375 in / 35 mm</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Frame</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">The frame is 11 gauge (.120”) 6x2-inch trapezoidal steel tubing electro-welded to 4.55x2.28x.113-inch thick bent flat oval steel tubing. The weight bar is 4130 cold drawn seamless steel tube, 1.375” diameter x .095” thick.</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Standard Frame / Movement Arm or Carriage Colors</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;"><strong>Frame:</strong> Black Pearl; <strong>Movement Arm:</strong> Metallic Ash<br><strong>Frame:</strong> Gloss Metallic Silver; <strong>Movement Arm:</strong> Metallic Ash</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Stocked Upholstery Colors</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">All Spice, Black, Grey</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Additional Upholstery Options (Additional lead time applies)</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Weight Storage Horns</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">Six Storage horns at 10 in / 25 cm length each (three per side)</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Max Load Weight</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">600 lb / 272 kg</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Starting Weight</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">25 lb / 11.3 kg</td></tr></tbody></table></figure><h4>Equipment Dimensions and Weight</h4><figure class="table" style="width:682px;"><table style="background-color:rgb(235, 235, 235);border:1px solid rgb(229, 229, 229);"><tbody><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Length</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">56 in / 142 cm</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Width</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">84 in / 214 cm</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Height</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">90 in / 229 cm</td></tr></tbody></table></figure><h4>Shipping Dimensions and Weight</h4><figure class="table" style="width:682px;"><table style="background-color:rgb(235, 235, 235);border:1px solid rgb(229, 229, 229);"><tbody><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Length</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">56 in / 142 cm</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Width</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">84 in / 214 cm</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Height</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">90 in / 229 cm</td></tr><tr><td style="border:1px solid rgb(255, 255, 255);padding:10px;text-align:right;vertical-align:top;width:170.25px;">Shipping Weight</td><td style="border:1px solid rgb(255, 255, 255);padding:10px;vertical-align:top;width:510.75px;">395 lb / 179 kg</td></tr></tbody></table></figure>
Warranty
Warranty
<ul>
<li>10 years frame and welds</li>
<li>5 years parts</li>
<li>1 year surface finish</li>
<li>6 months limited parts</li>
<li>1 year labor</li>
</ul>
