Powertec Compact Leg Sled

Come and see this product in store | Find your nearest store





New for 2024, the Powertec Compact Leg Sled has just been upgraded to offer enhanced safety features, wider foot positioning, and easier assembly, for one of the smoothest and most compact leg press machines on the market. The sled glides on a specially designed carriage driven by ultra-low resistance nylon wheels with sealed bearings. While the footprint is quite compact, the leg sled still allows for full calf raise for most users.


  • Improved safety lock for smoother gliding and easier assembly
  • New and improved ergonomic locking pop pin for backrest and footplate adjustment
  • Wider foot platform (previously 25” x 25”, now 25” x 30” allowing for wider squat positioning of feet
  • Angled weight horns for improved balance and weight distribution, allowing for a smoother movement
  • New Range Limiter Peg with 3 positions on the center column to allow user to control the stop position - ideal for rehabilitation and those with limited range of motion.



The sled is driven by nylon bearing wheels that provide an ultra-smooth and quiet ride. The carriage holds 8 wheels that hug the solid steel guide rods preventing lateral movement and providing a precise smooth motion from top to bottom.


The seat and adjustable back pad, along with the adjustable angle footplate and hand grips, lock the user into the perfect position to perform the exercise, alleviating stress on the lower back.


The design of the carriage and seat section allow for a leg sled that is significantly more compact than any other in its class. An adjustable and removable foot tube is also included for calf raise exercises, that can also be stowed underneath the footplate when not in use.


The angle of the rails on the Compact Leg Sled is 28.5 degrees. Multiply the total weight by .48 to get the effective amount being lifted.

 So for every 100 lbs of weight plates, you will be lifting 48 lbs.

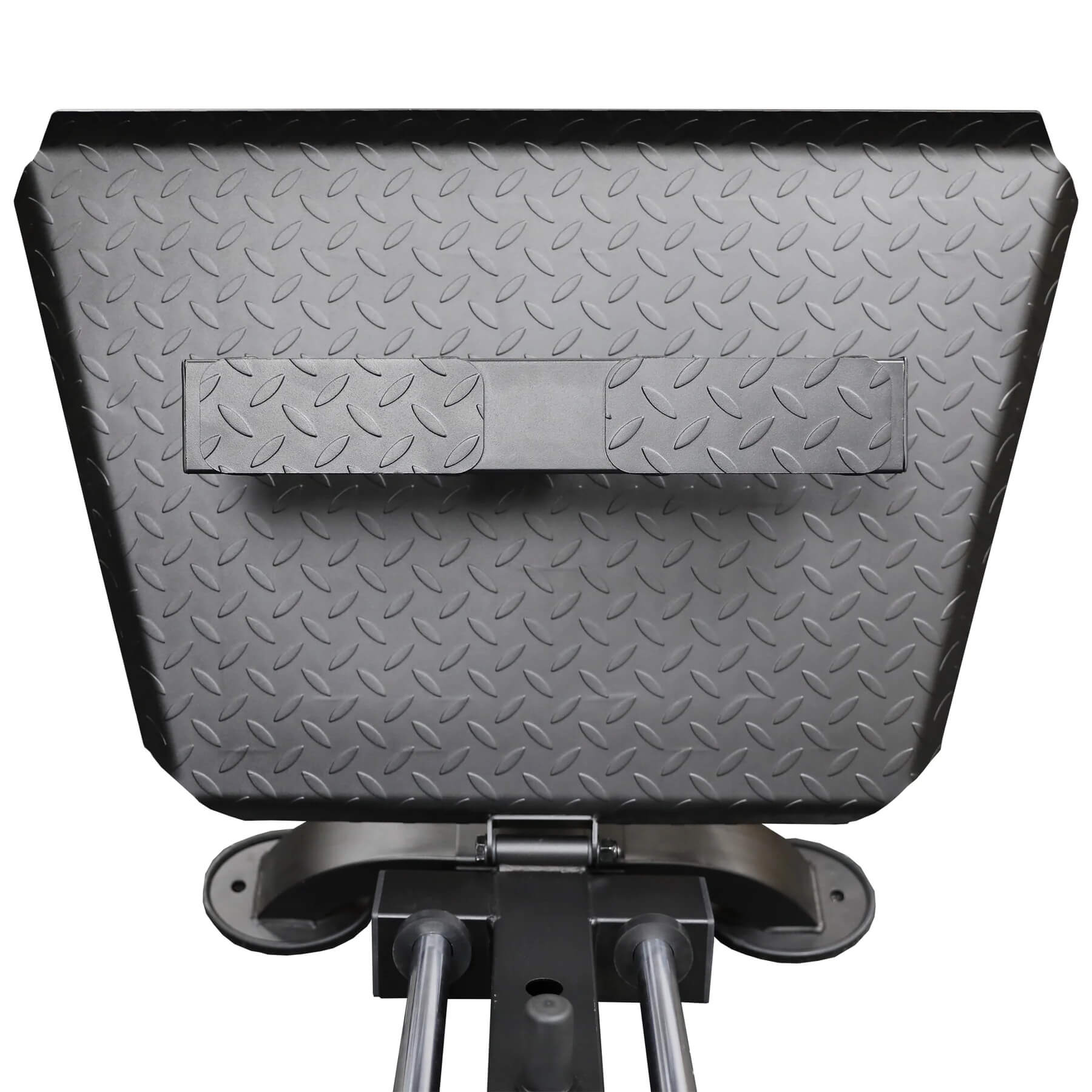

Foot plate measures 25" x 30”, widening at the top to allow for a wider foot placement.

User Height Settings:

Measure in a seated position with legs straight, from your hip to your heel.

Tallest setting: 44in

Middle setting: 39.5in

Shorted setting: 33in

Accessories Available: No

Isolateral Function: No

Starting Weight (Unloaded): 30 lbs.

Max Weight Capacity: 700 lbs.

Dimensions (L x W x H): 67.1" x 46.5" x 45.7" (29° Rail Angle) (Footplate: W25" x H22")

Product Weight: 190 lbs.

Total Shipping Weight: 198 lbs.

All Powertec machines are covered under the following warranty to the original registered purchaser and for home use ONLY:


- Limited Lifetime warranty on the frame (excludes surface finish).
- Five years warranty on moving frame (excludes surface finish).
- Two years on component parts* (bearings, spring pins and hardwares).
- One year on pads, grips and any other wear/tear parts.
- Shipping charges may not be covered under the warranty.
- Replacement parts may vary in paint color.

Customer Reviews

Based on 1 review
Raymond H.S. (Pittsburgh, US)
Compact Leg Press.

My experience at this point is a good one. I have used the equipment twice. I have yet to test it to capacity. One point that will tell as time moves on is that the carriage leans when applying weight to one side but rights itself when weight is added to the other side. My question is when adding capacity weight, will the carriage hold.
