Freemotion b22.9 CoachBike™ - Demo Model
Freemotion b22.9 CoachBike™ - Demo Model
Couldn't load pickup availability
Description
Description
Engage with the immersive cycling experience that keeps you coming back for more. With auto-adjusting technology that matches the incline and decline of the on-screen terrain the Freemotion b22.9 CoachBike™ delivers an unrivaled immersive experience.
- Thousands of live-streaming and on-demand workouts led by elite coaches
- Stunning 22 inch / 55cm HD Capacitive Touchscreen

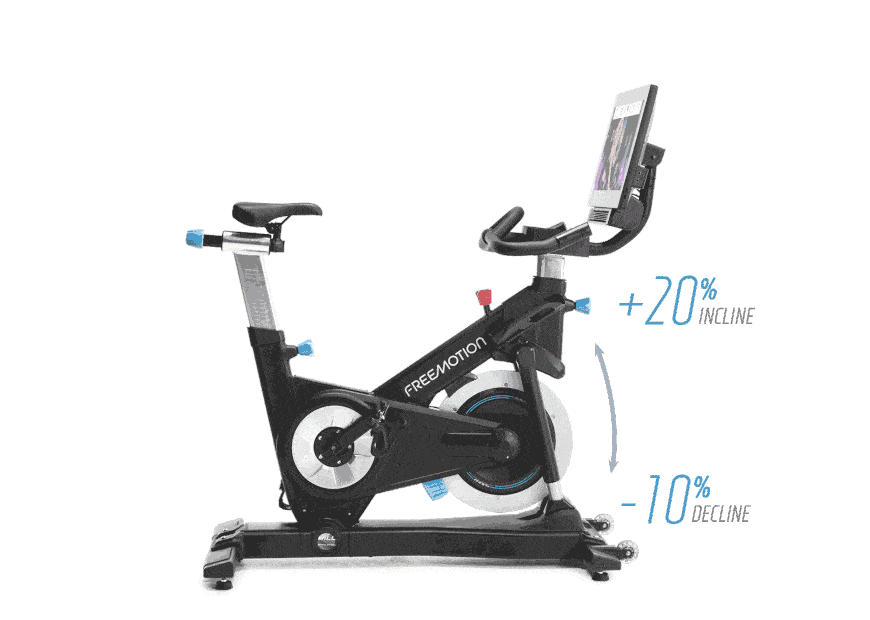

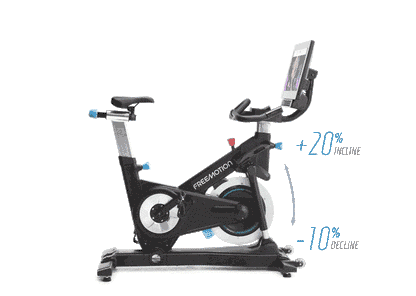

- Immersive tech adjusts bike to 20% incline and -10% decline
- SMR Silent Magnetic Resistance System

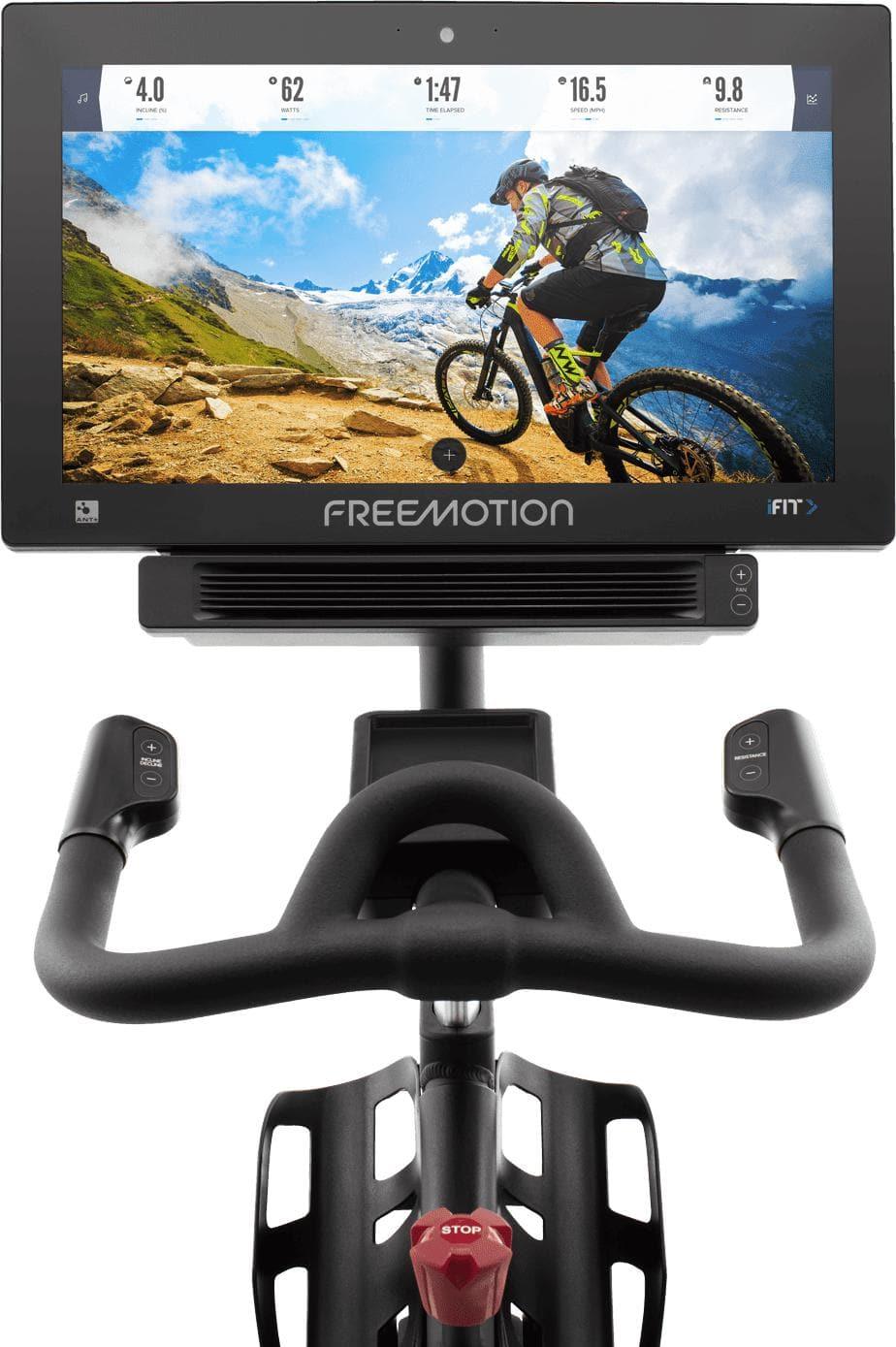

HIGH-DEFINITION DISPLAY
Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22 in / 55 cm capacitive touchscreen.
ACCESSIBLE AND ENGAGING SOLUTION
Participate in the high-intensity studio classes you’ve always wanted, now with a cardio machine that works for your body. With a Step-Thru™ design and ergonomically engineered seat, you have the equipment to thrive.
[SPECIFICATION]
CONSOLE FEATURES

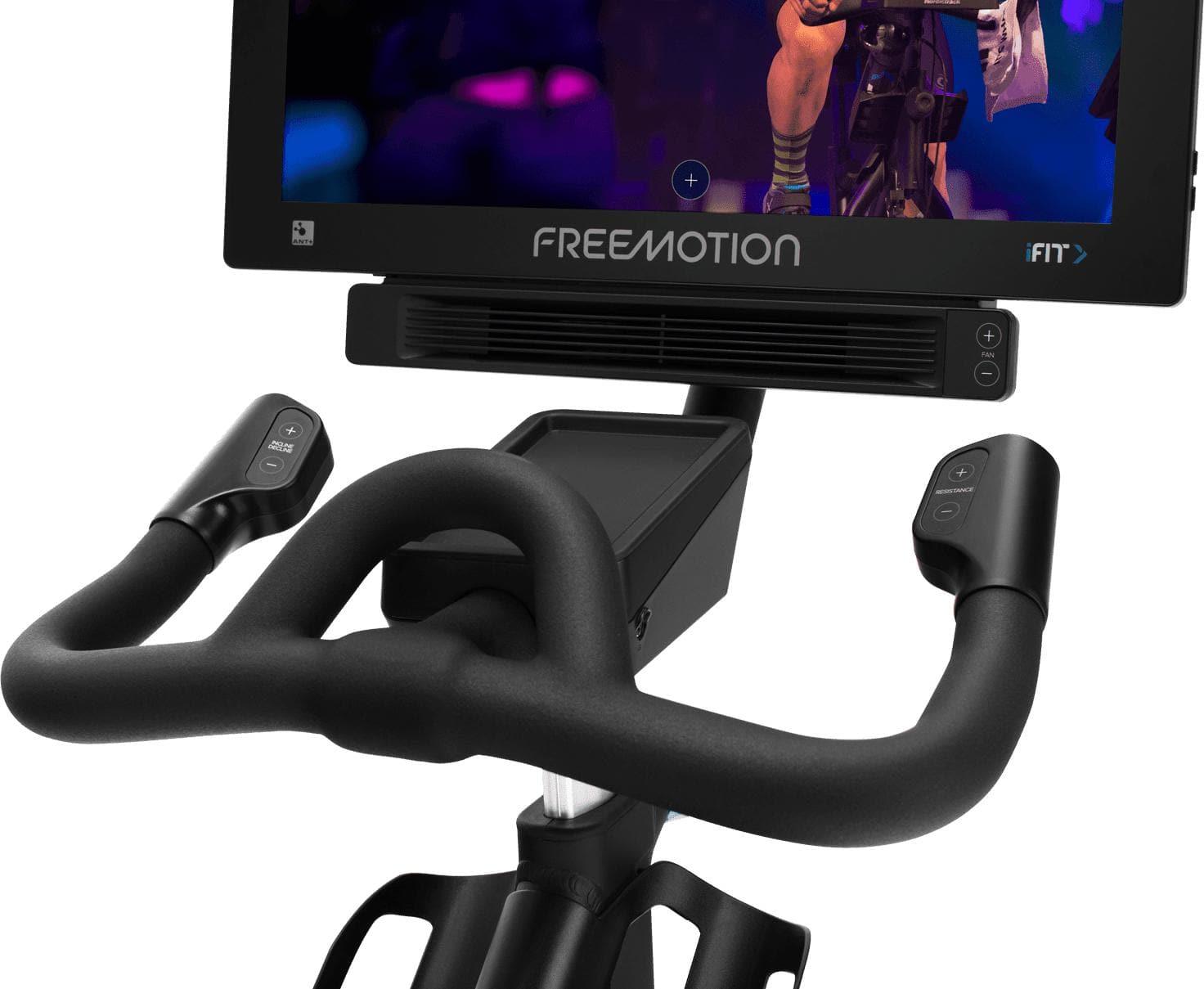

- Display Type: Adjustable 22 in / 55 cm High-Definition Capacitive Touchscreen
- Resolution: 1080p ISP LCD Screen
- Controls: Touchscreen, On-handle Digital Controls
- Workout Metrics: Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
- Number of Programs: Thousands of Global Workouts and Studio Classes with iFIT
- Preset Programs: Limitless iFIT Training Options
- Google Maps: Enabled
- Console Language(s): English
- Featured Languages: EN, also DE, ES, FR, IT, PT, RU, ZH
- Maximum Workout Time: 99:59 (99 Minutes + 59 Seconds)
- Maximum Pause Time: 60 Seconds
- Additional Options: N/A
ENTERTAINMENT
- TV Tuner: N/A
- Closed Captioning: N/A
- Optional Upgrades: N/A
CONNECTIVITY
- Recommended Internet Connection: Dedicated Ethernet - Cat 6
- Ethernet Requirements: Cat 6 Preferred (Cat 5e or higher required)
- WiFi Connection: 2.4 / 5 GHZ (Dedicated Ethernet Strongly Recommended)
- WiFi Minimum Requirements: 10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
- Video Connections: HDMI Input
- Audio Connections: 3.5 mm Audio Out, Bluetooth
- CSAFE: N/A
- ECOFIT: N/A
PRODUCT FEATURES
- Drive System: Direct Drive Flywheel w/ Manual Brake
- Crank & Axle: 3-Piece Crank
- Drive Belt: Gates Carbon GT Belt Drive System

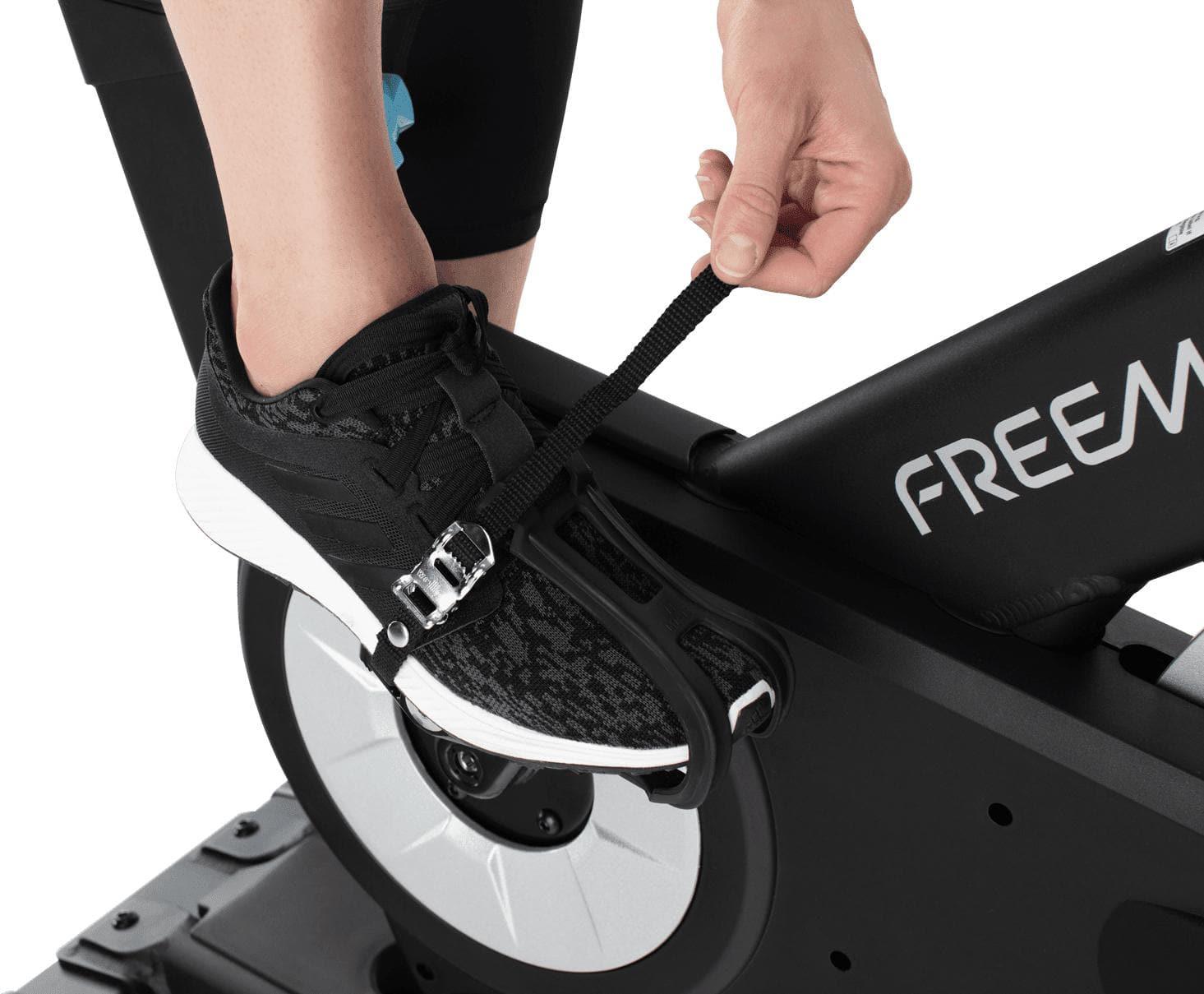

- Pedals: Dual-sided pedals (SPD and strap)
- Gear Ratio: N/A
- Resistance System: SMR™ Silent Magnetic Resistance
- Elevation System: -10% decline to +20% incline

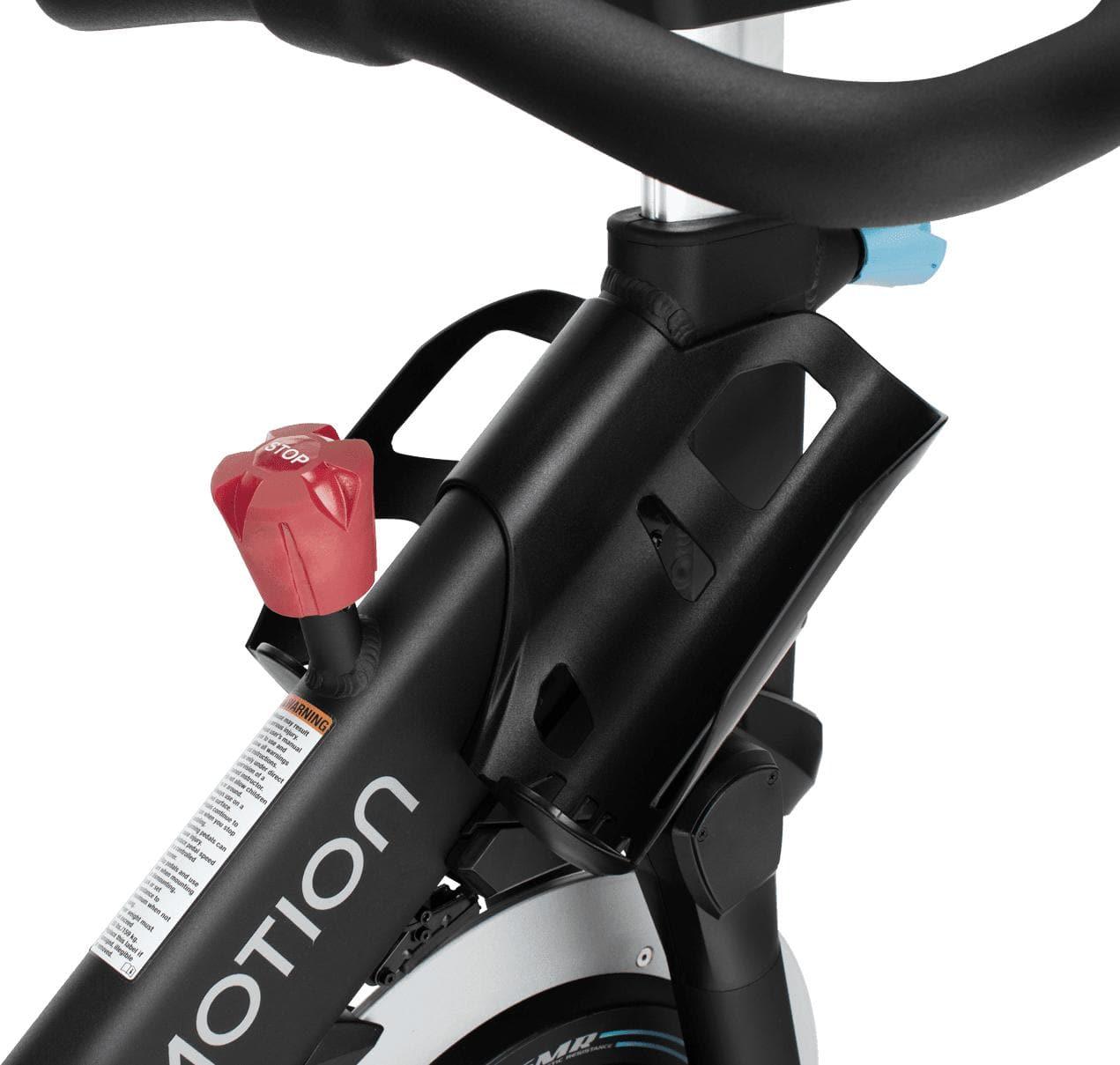

- Emergency Stop: Manual Flywheel Break
- Heart Rate Monitoring: ANT+ and Polar Compatible
- Workout Fan: CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™
- Accessory Charging: USB Charging Port
- Accessory Holder(s): Dual Water Bottle Holders, Secure Phone Holder

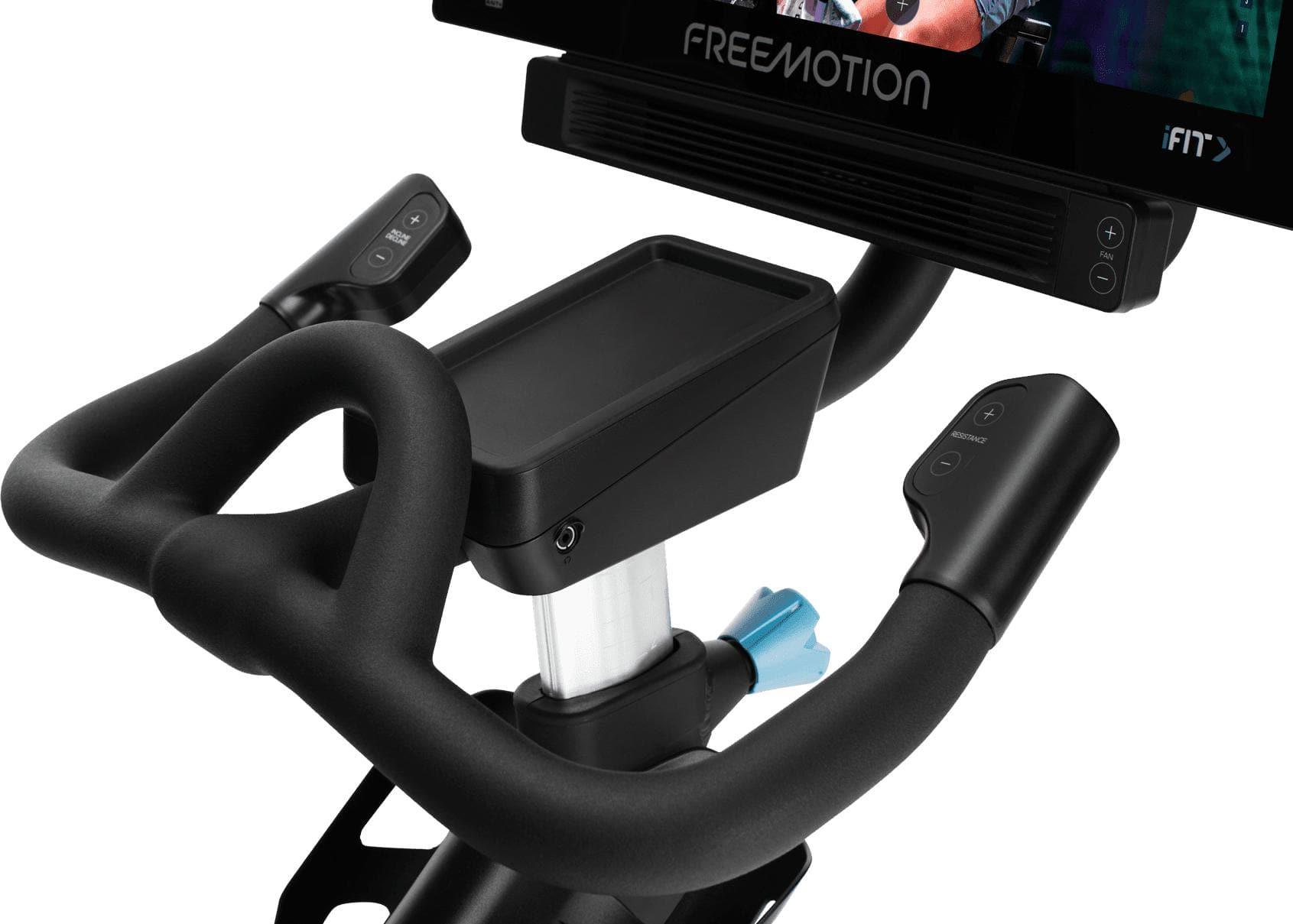

- Handlebars: Height Adjustable

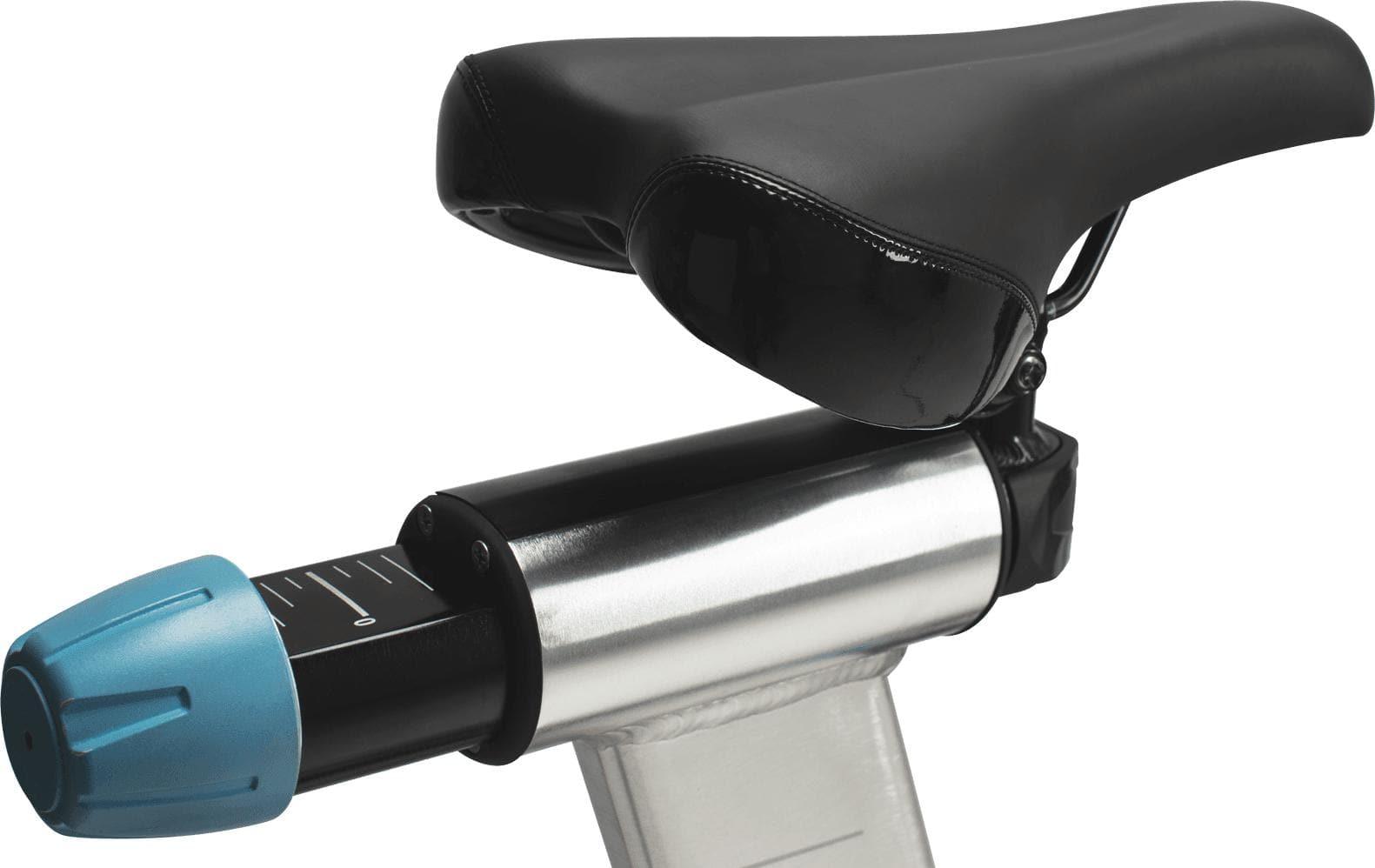

- Seat: Ergonomic padded saddle with fore and aft adjustments
- Frame: Lightweight, Corrosion-Resistant Aluminum Frame
- Positioning: Large Adjustable Leveling Feet
- Transport Wheels: Front-Mounted Transport Wheels
- Color Options: N/A (Flat Black is standard color)
- Unit Options: N/A
-
Power Options: 110-120 VAC, 3 Amp
220-240 VAC, 1.5 Amp - Power Cord Storage: Under Unit
PRODUCT SPECIFICATIONS
- Maximum User Weight: 350 lb / 159 kg
- Flywheel Weight: 41 lb / 18.7 kg
- Resistance Levels: 1-24 Levels of Resistance

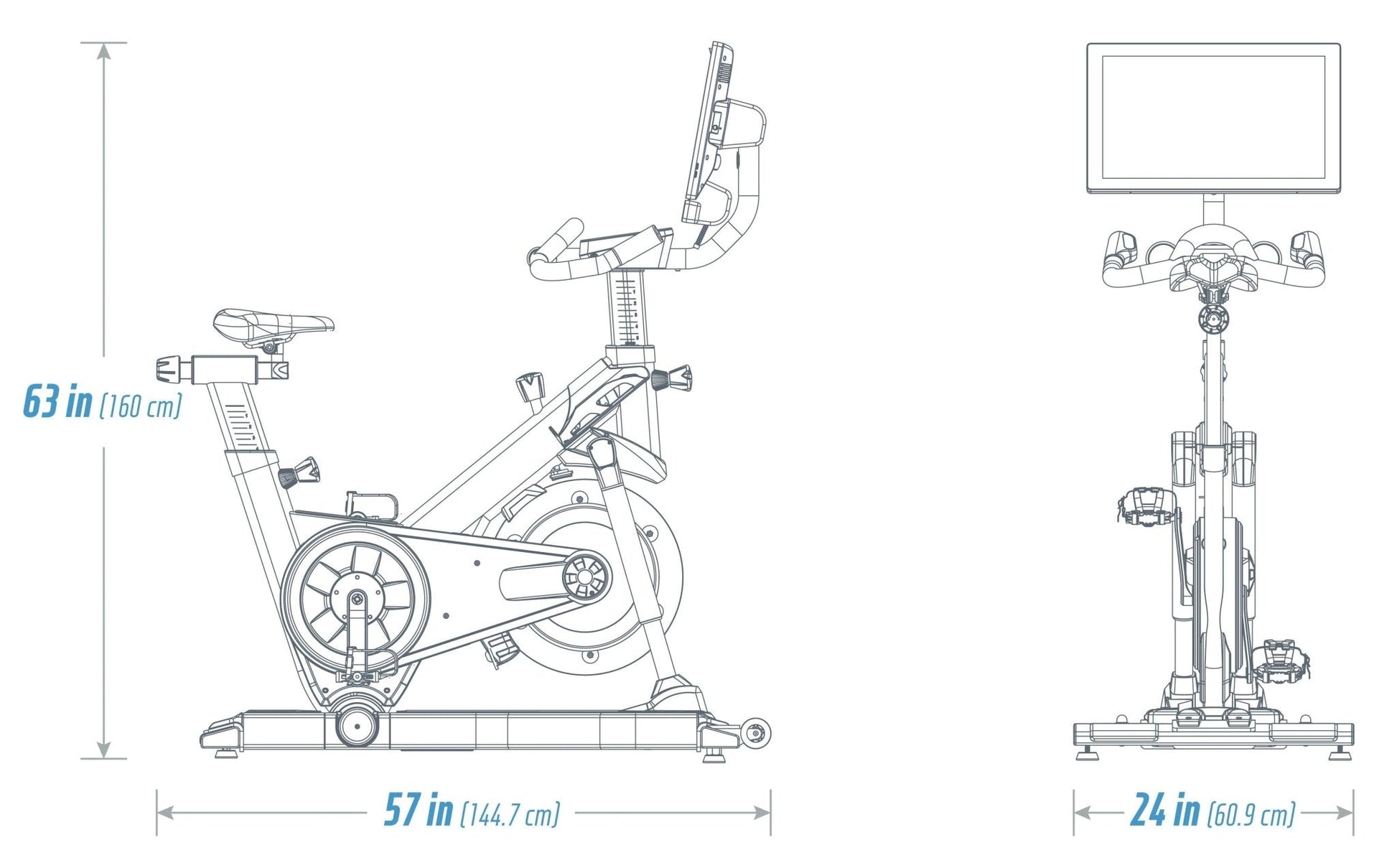

DIMENSIONS & WEIGHT
- Product Dimensions L x W x H: 56.5 x 24 x 61.5 in / 143.5 x 61 x 156.2 cm
- Product Weight: 168 lb / 76.2 kg
- Shipping Dimensions L x W x H: 48.5 x 18.5 x 38.5 in / 123.2 x 47 x 97.8 cm
- Shipping Weight: 194 lb / 88 kg
POWER REQUIREMENTS
- U.S. & Canada: 110-120 VAC, 3 Amp
- International: 220-240 VAC, 1.5 Amp
CERTIFICATIONS
- cTUVus, FCC/IC, BQB
Specifications
Specifications
CONSOLE FEATURES
- Display Type: Adjustable 22 in / 55 cm High-Definition Capacitive Touchscreen
- Resolution: 1080p ISP LCD Screen
- Controls: Touchscreen, On-handle Digital Controls
- Workout Metrics: Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
- Number of Programs: Thousands of Global Workouts and Studio Classes with iFIT
- Preset Programs: Limitless iFIT Training Options
- Google Maps: Enabled
- Console Language(s): English
- Featured Languages: EN, also DE, ES, FR, IT, PT, RU, ZH
- Maximum Workout Time: 99:59 (99 Minutes + 59 Seconds)
- Maximum Pause Time: 60 Seconds
- Additional Options: N/A
ENTERTAINMENT
- TV Tuner: N/A
- Closed Captioning: N/A
- Optional Upgrades: N/A
CONNECTIVITY
- Recommended Internet Connection: Dedicated Ethernet - Cat 6
- Ethernet Requirements: Cat 6 Preferred (Cat 5e or higher required)
- WiFi Connection: 2.4 / 5 GHZ (Dedicated Ethernet Strongly Recommended)
- WiFi Minimum Requirements: 10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
- Video Connections: HDMI Input
- Audio Connections: 3.5 mm Audio Out, Bluetooth
- CSAFE: N/A
- ECOFIT: N/A
PRODUCT FEATURES
- Drive System: Direct Drive Flywheel w/ Manual Brake
- Crank & Axle: 3-Piece Crank
- Drive Belt: Gates Carbon GT Belt Drive System
- Pedals: Dual-sided pedals (SPD and strap)
- Gear Ratio: N/A
- Resistance System: SMR™ Silent Magnetic Resistance
- Elevation System: -10% decline to +20% incline
- Emergency Stop: Manual Flywheel Break
- Heart Rate Monitoring: ANT+ and Polar Compatible
- Workout Fan: CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™
- Accessory Charging: USB Charging Port
- Accessory Holder(s): Dual Water Bottle Holders, Secure Phone Holder
- Handlebars: Height Adjustable
- Seat: Ergonomic padded saddle with fore and aft adjustments
- Frame: Lightweight, Corrosion-Resistant Aluminum Frame
- Positioning: Large Adjustable Leveling Feet
- Transport Wheels: Front-Mounted Transport Wheels
- Color Options: N/A (Flat Black is standard color)
- Unit Options: N/A
-
Power Options: 110-120 VAC, 3 Amp
220-240 VAC, 1.5 Amp - Power Cord Storage: Under Unit
PRODUCT SPECIFICATIONS
- Maximum User Weight: 350 lb / 159 kg
- Flywheel Weight: 41 lb / 18.7 kg
- Resistance Levels: 1-24 Levels of Resistance
DIMENSIONS & WEIGHT
- Product Dimensions L x W x H: 56.5 x 24 x 61.5 in / 143.5 x 61 x 156.2 cm
- Product Weight: 168 lb / 76.2 kg
- Shipping Dimensions L x W x H: 48.5 x 18.5 x 38.5 in / 123.2 x 47 x 97.8 cm
- Shipping Weight: 194 lb / 88 kg
POWER REQUIREMENTS
- U.S. & Canada: 110-120 VAC, 3 Amp
- International: 220-240 VAC, 1.5 Amp
CERTIFICATIONS
- cTUVus, FCC/IC, BQB
Warranty
Warranty
WARRANTY (US & CANADA)
- Frame: 7 Years
- Belt: 5 Years
- Parts & Console: 2 Years
- Labor: 1 Year
- Cosmetic & Wear Items: 6 Months
Shipping methods available at checkout
Economy
- Ships in 2-3 weeks
- Curbside Delivery Only
Economy
$539Our free shipping option. Items usually ship within 2-3 weeks via freight handler, and home delivery is typically 3-4 weeks from date of order. Customer is contacted ahead of time to schedule curbside delivery.
*Does not include inside delivery, assembly or installation (curbside delivery only)
Delivery & Assembly
- Ships in 2 - 3 weeks
- In-home Delivery & Assembly in Room of Choice
Delivery & Assembly
$809Items usually ship within 7-10 days via freight handler, and home delivery is typically 2-3 weeks from date of order.
After garage delivery, a team of technicians will schedule full assembly and installation, including bringing the equipment into the home and up or down any stairs.
*This is the best option for customers without driveway or garage access, such as apartments where equipment must be delivered up or down stairs.
Come and see this product in store | Find your nearest store














WORLD-RENOWNED FITNESS COACHES
We’ve hand-selected 200+ Olympic champions, celebrities, physical therapists, professional cyclists, and location guides to be your iFIT coaches. With unique training styles and personalities that motivate and inspire, you’ll quickly find your new favorite trainer.

GLOBAL WORKOUTS
Explore the world without leaving the room with thousands of inspiring training videos beautifully filmed in stunning locations around the globe, including 60+ countries and all 7 continents. Your bike’s incline/decline will even adjust to match the terrain and instructions of your coach.

GOOGLE MAPS
Ride anywhere in the world with Google Maps. Create a route, and iFIT will adjust your bike’s incline/decline to match the on-screen terrain, allowing you to virtually explore 10 million miles (16 million km) of mapped locations. Revisit your childhood neighborhood or train for an out-of-town triathlon before completing it in person.
